Comparison with the November 3, 1994 Solar Eclipse

The High Altitude Observatory's expedition to Putre, Chile photographed the eclipse. Their beautiful image inspired us to compute an MHD model of the solar corona for Carrington Rotation 1888 (October 10 - November 6, 1994). To perform the calculation, we used photospheric magnetic field data from Wilcox Solar Observatory.

Eclipse image courtesy of HAO, taken at 12:18:25 UT. Heliocentric north is 24 degrees counter clockwise of vertical. Vertical (top) is geocentric north. Click image for high resolution GIF (24 Kbytes).

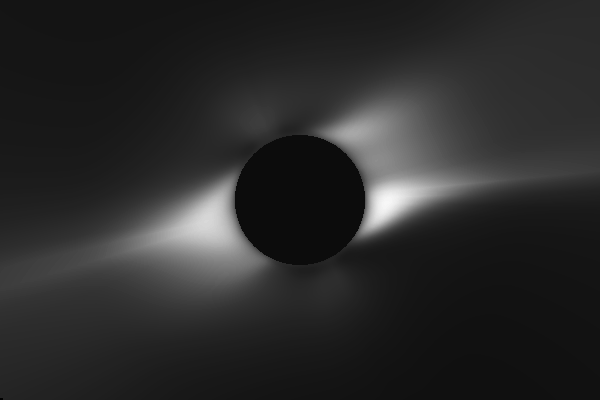

The computed polarization brightness from an MHD simulation of Carrington rotation 1888. The view corresponds to the approximate time of the eclipse (Carrington longitude of 40 degrees) with the same orientation as the eclipse image above. Click image for high resolution GIF (21 Kbytes).

A blending of the eclipse image with a soft X-ray image courtesy of Yohkoh from near the time of the eclipse. Note that the base of the helmet streamers are visible in the Yohkoh image as well. Click image for high resolution JPEG (15 Kbytes).

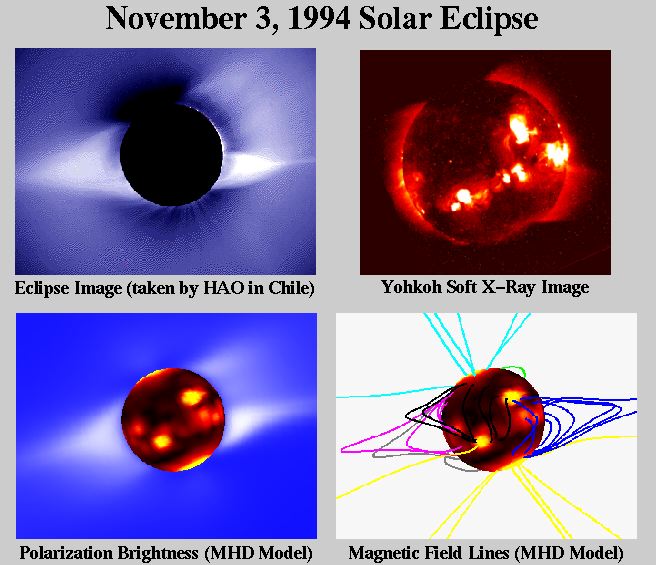

Further eclipse day comparison, including magnetic field lines, available here (67 Kbyte JPEG)

Further images and movies from Carrington rotation 1888 available here

Acknowledgements

The Eclipse Photo is courtesy of the High Altitude Observatory, National Center for Atmospheric Research, University Corporation for Atmospheric Research, National Science Foundation. Also, a special thanks to Alice Lecinski of HAO.

The solar X-ray image is from the Yohkoh mission of the Institute of Space and Astronomical Science (ISAS) in Japan. The X-ray telescope was prepared by the Lockheed Palo Alto Research Laboratory, the National Astronomical Observatory of Japan, and the University of Tokyo with the support of NASA and ISAS.
