Spacecraft Mapping
==================

Magnetic connectivity mapping showing field lines traced from spacecraft
positions back to the solar surface. Footpoint locations on the source
surface and photosphere are overlaid on the simulated coronal field.
Each tab shows two views: Br at the photosphere (r = 1 R☉) and the
coronal hole map.

.. admonition:: Run
   :class: note

   **bgtest_superlowres** — CR2121,
   MAST3, Steady-State
   (2012-03-04 – 2012-03-31)

----

.. raw:: html

   <style>
     .sc-tab-bar { display: flex; gap: 4px; margin-bottom: 0; border-bottom: 2px solid #ccc; }
     .sc-tab-btn {
       padding: 7px 18px; cursor: pointer; border: 1px solid #ccc;
       border-bottom: none; background: #f5f5f5; border-radius: 4px 4px 0 0;
       font-size: 0.95em; color: #333;
     }
     .sc-tab-btn.active { background: #fff; border-bottom: 2px solid #fff; margin-bottom: -2px; font-weight: 600; color: #111; }
     .sc-tab-panel { display: none; padding: 16px 0; }
     .sc-tab-panel.active { display: block; }
     .sc-grid { display: grid; grid-template-columns: repeat(2, 1fr); gap: 16px; }
     .sc-figure { text-align: center; }
     .sc-figure img { width: 100%; border-radius: 4px; }
     .sc-figure figcaption { font-size: 0.85em; color: var(--md-default-fg-color); margin-top: 6px; }
   </style>

   <div class="sc-tab-bar">
     <button class="sc-tab-btn active"
             onclick="scShowTab('omni', this)">OMNI</button>
     <button class="sc-tab-btn"
             onclick="scShowTab('stereo-a', this)">Stereo-A</button>
     <button class="sc-tab-btn"
             onclick="scShowTab('stereo-b', this)">Stereo-B</button>
   </div>

   <div id="sc-omni" class="sc-tab-panel active">
     <div class="sc-grid">
       <figure class="sc-figure">

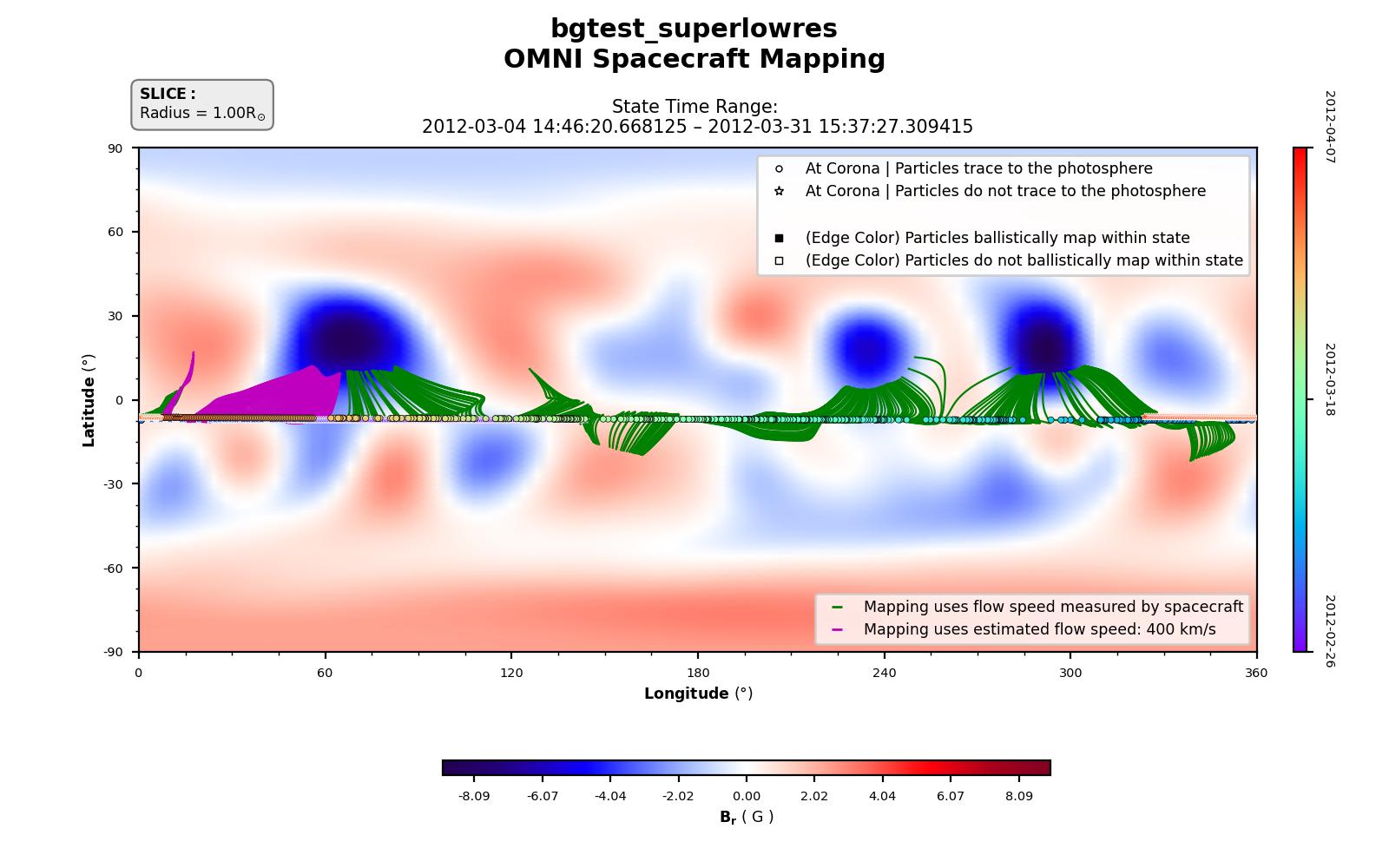

         <img src="_static/spacecraft_mapping/omni_omni_br.jpg" alt="Spacecraft connectivity mapping for OMNI — Br at photosphere. Field-line footpoints traced from spacecraft positions to the solar surface.">
         <figcaption>Spacecraft connectivity mapping for OMNI — Br at photosphere. Field-line footpoints traced from spacecraft positions to the solar surface.</figcaption>
       </figure>
       <figure class="sc-figure">

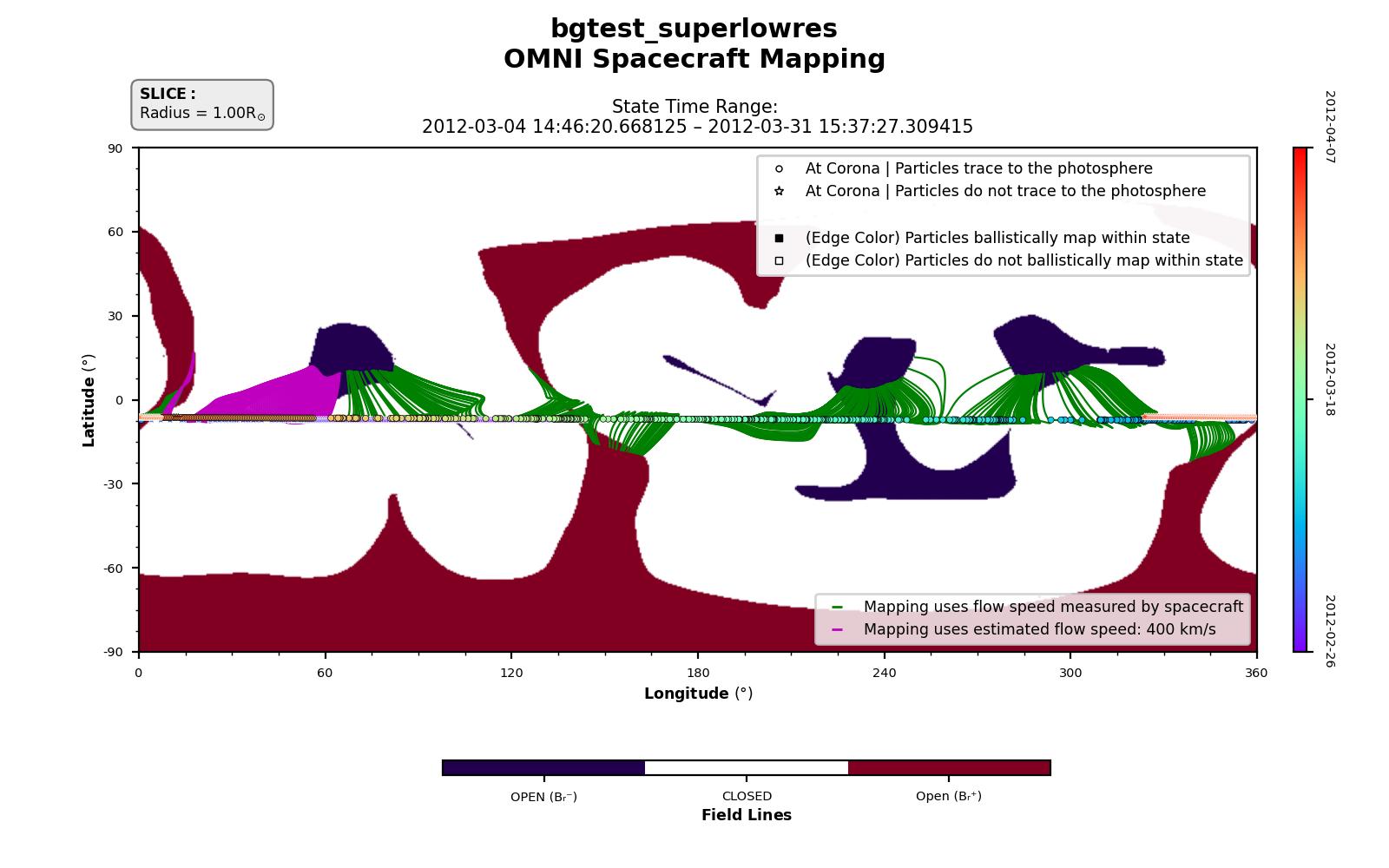

         <img src="_static/spacecraft_mapping/omni_omni_chmap.jpg" alt="Spacecraft connectivity mapping for OMNI — Coronal hole map. Field-line footpoints traced from spacecraft positions to the solar surface.">
         <figcaption>Spacecraft connectivity mapping for OMNI — Coronal hole map. Field-line footpoints traced from spacecraft positions to the solar surface.</figcaption>
       </figure>
     </div>
   </div>
   <div id="sc-stereo-a" class="sc-tab-panel">
     <div class="sc-grid">
       <figure class="sc-figure">

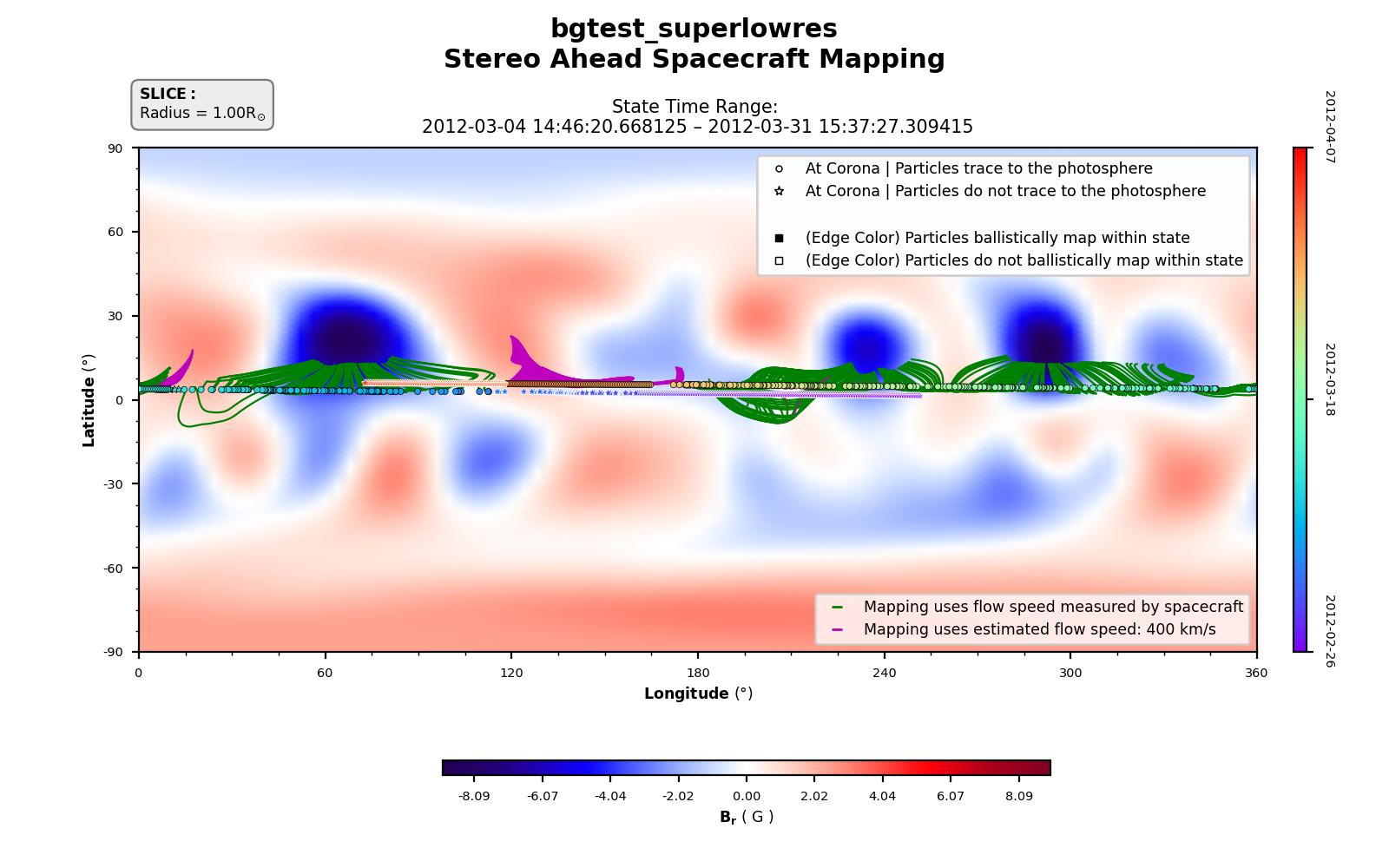

         <img src="_static/spacecraft_mapping/stereo-a_stereoa_br.jpg" alt="Spacecraft connectivity mapping for Stereo-A — Br at photosphere. Field-line footpoints traced from spacecraft positions to the solar surface.">
         <figcaption>Spacecraft connectivity mapping for Stereo-A — Br at photosphere. Field-line footpoints traced from spacecraft positions to the solar surface.</figcaption>
       </figure>
       <figure class="sc-figure">

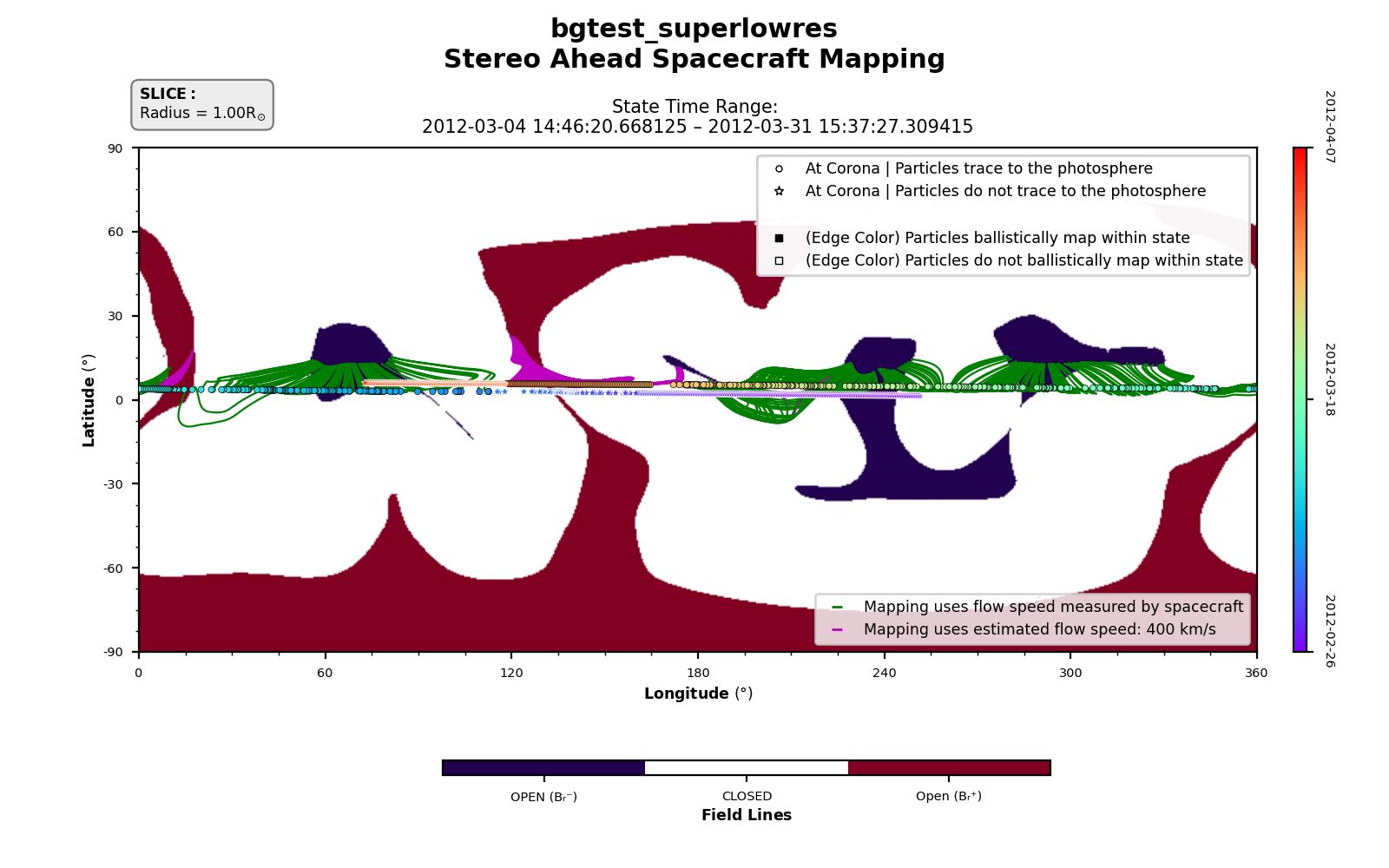

         <img src="_static/spacecraft_mapping/stereo-a_stereoa_chmap.jpg" alt="Spacecraft connectivity mapping for Stereo-A — Coronal hole map. Field-line footpoints traced from spacecraft positions to the solar surface.">
         <figcaption>Spacecraft connectivity mapping for Stereo-A — Coronal hole map. Field-line footpoints traced from spacecraft positions to the solar surface.</figcaption>
       </figure>
     </div>
   </div>
   <div id="sc-stereo-b" class="sc-tab-panel">
     <div class="sc-grid">
       <figure class="sc-figure">

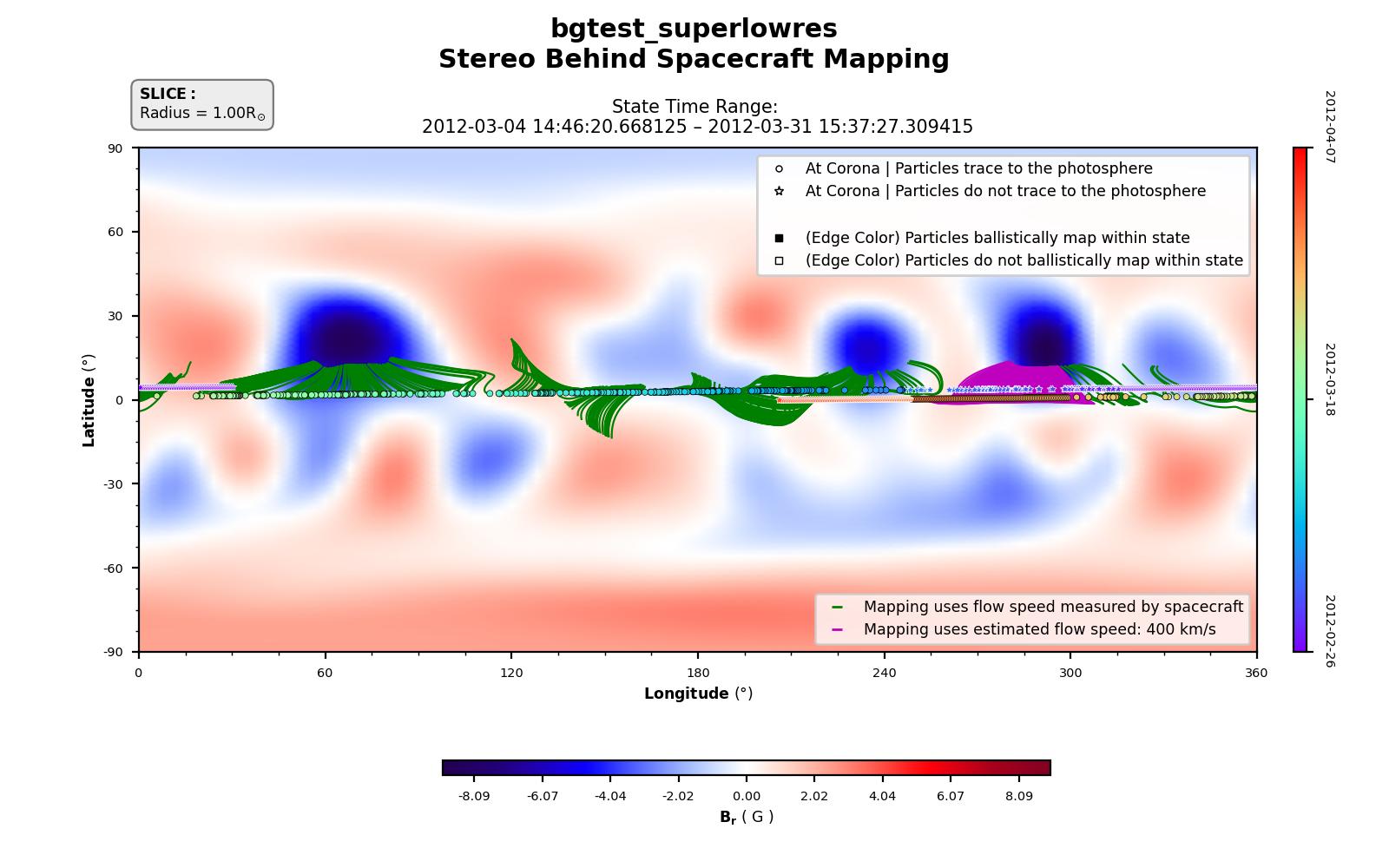

         <img src="_static/spacecraft_mapping/stereo-b_stereob_br.jpg" alt="Spacecraft connectivity mapping for Stereo-B — Br at photosphere. Field-line footpoints traced from spacecraft positions to the solar surface.">
