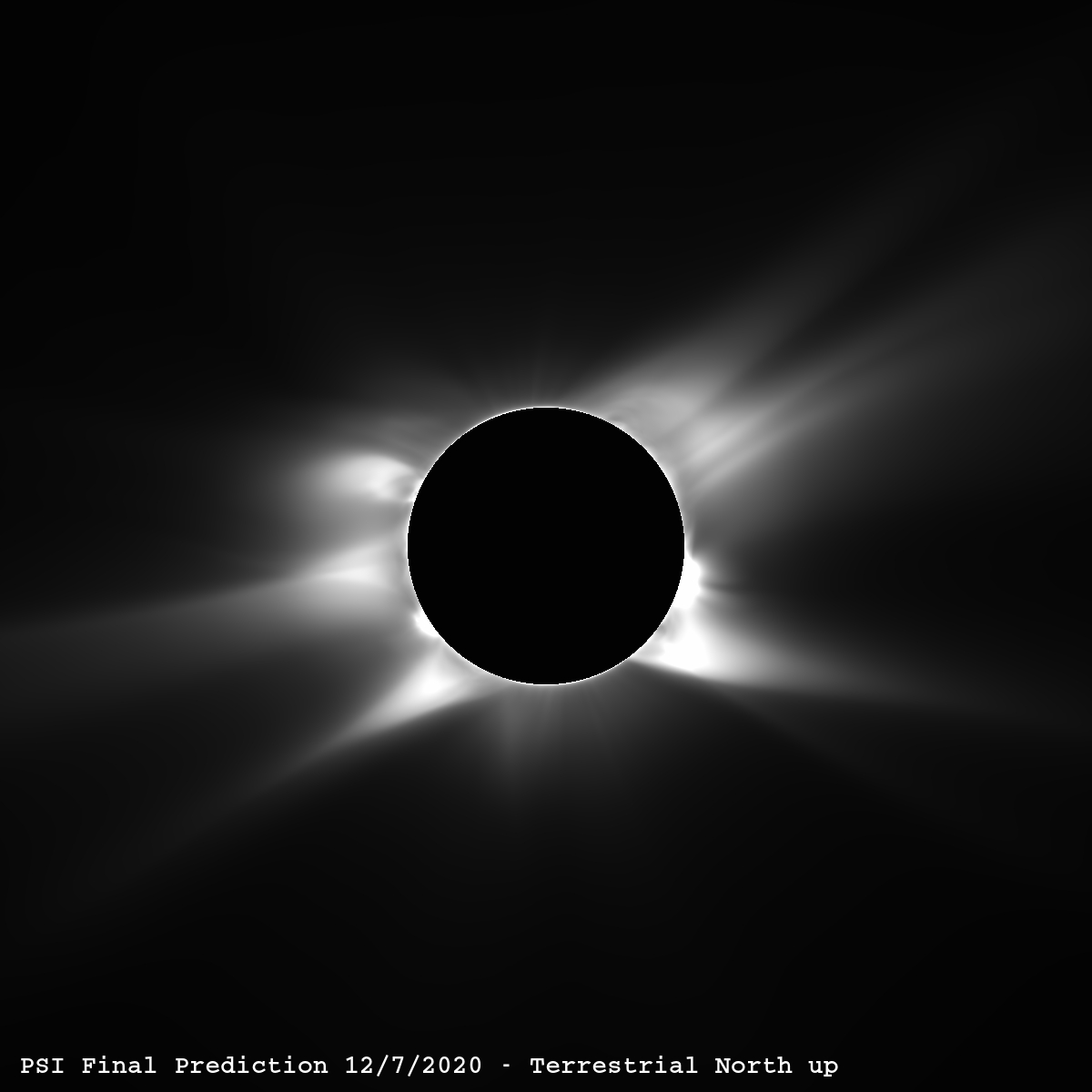

Brightness (Newkirk Filter)

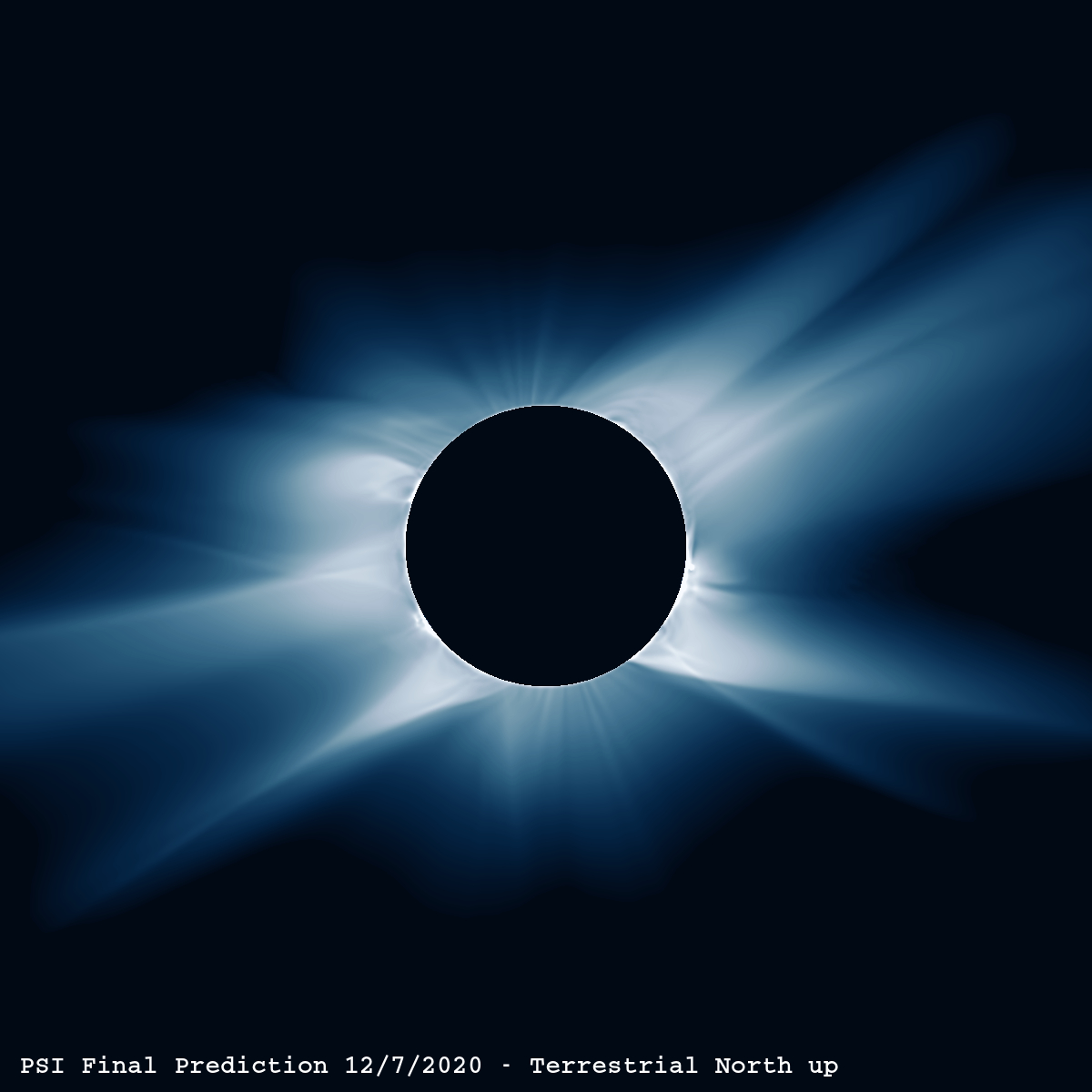

Log Brightness (Unsharp Masked)
This is our final prediction of the solar corona for the December 14, 2020 total solar eclipse. This updates our preliminary prediction posted on November 23. The above images show two versions of the predicted white light brightness in the corona. The left image shows an image processed to simulate what would be seen when using a "Newkirk" radially graded filter. The image on the right is the brightness on a log scale, sharpened using an "Unsharp Mask" filter. These are two different attempts to approximate what the human eye might see during the solar eclipse.
The Sun is in the early phase of the new solar cycle, so the solar magnetic field is evolving rapidly. The corona's appearance can change significantly in several days, as can be seen by comparing our new prediction (latest magnetic field data on November 29) with our preliminary prediction (latest magnetic field data on November 12). Further changes between November 29 and December 14 are possible (and indeed, likely), making prediction more difficult than at the time of the July 2, 2019 eclipse.
The image below on the left shows a digital processing of the brightness using a "Wavelet" filter to bring out the details in the image. The image on the right shows traces of selected magnetic field lines from the model. Additional details about the eclipse and our prediction model are given below.

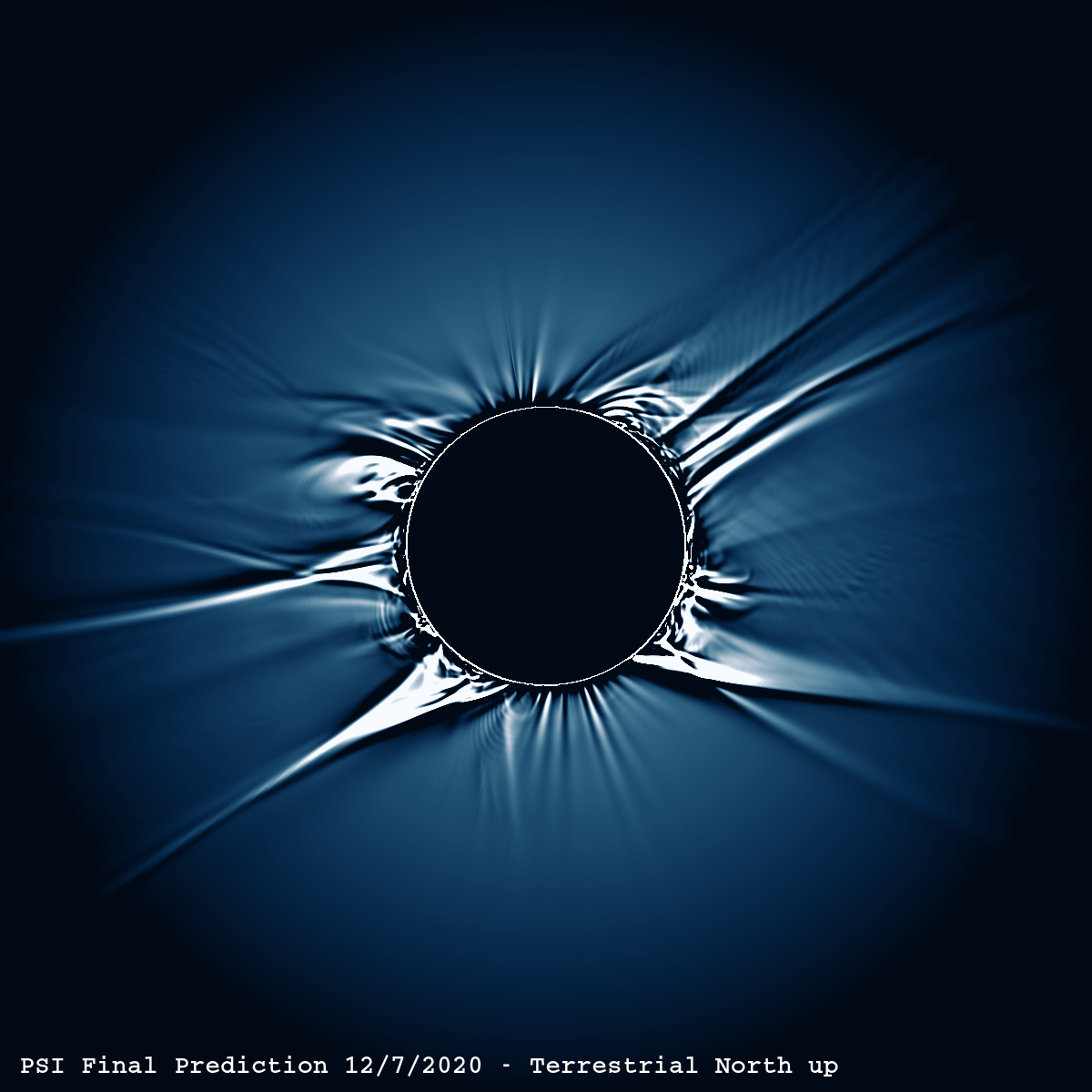

Brightness (Wavelet Filtered)

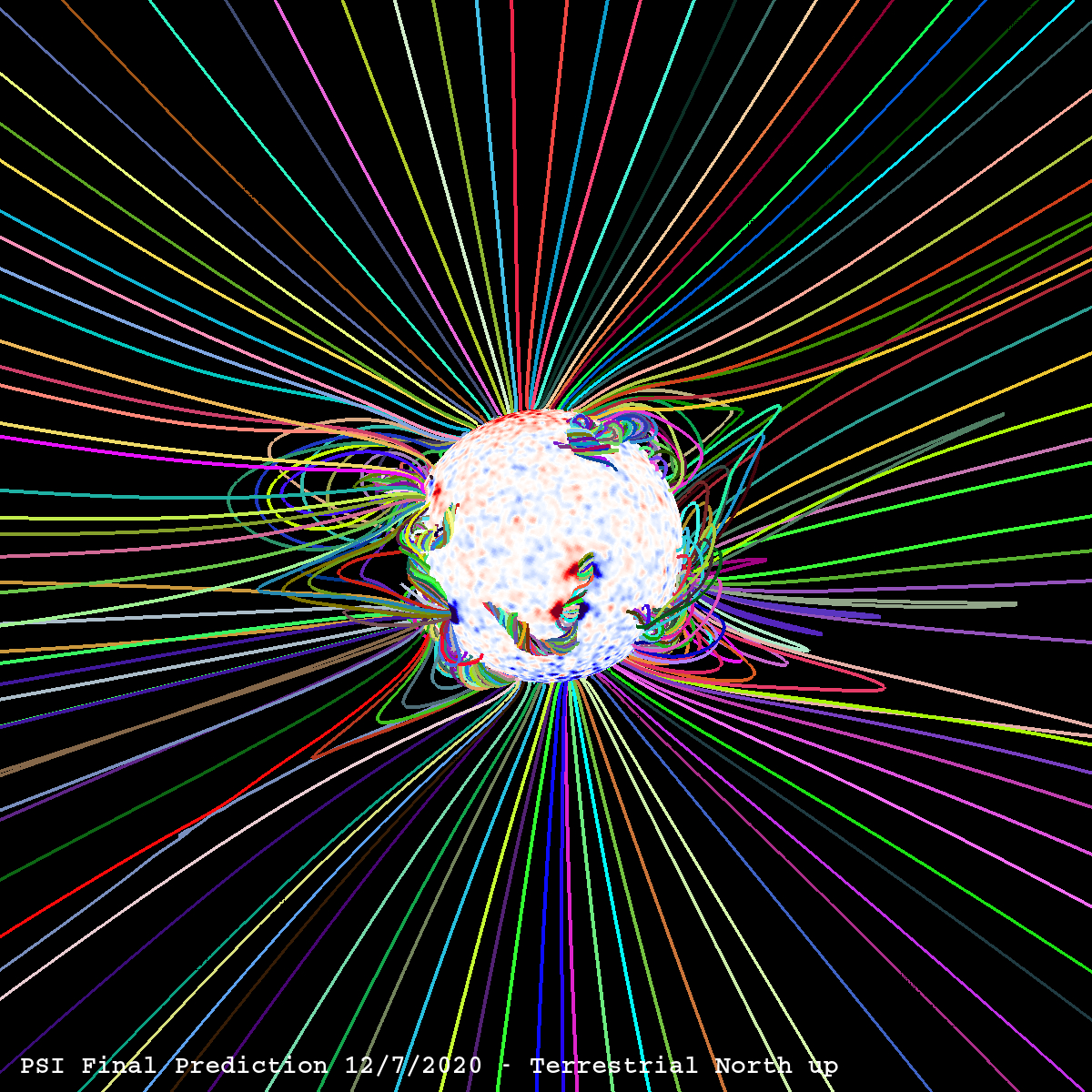

Magnetic Field Lines
These images are aligned so that terrestrial (geocentric) north is up, for the time of totality (16:03 UT) near Villarrica, Chile. This is the view of the Sun that would be seen by an observer on Earth with a camera aligned so that vertical is toward the Earth's north pole. Because the eclipse will be visible high in the sky in the southern hemisphere, many of the photographs you see may have the south pole near vertical instead. Here is the perspective for a spectator on the ground in Villarrica looking up. In the magnetic field line image, the Sun's surface shows the intensity of the radial component of the photospheric magnetic field. The brightest colors show the location of active regions (strong magnetic fields). Images in a coordinate system aligned with solar north are also available.

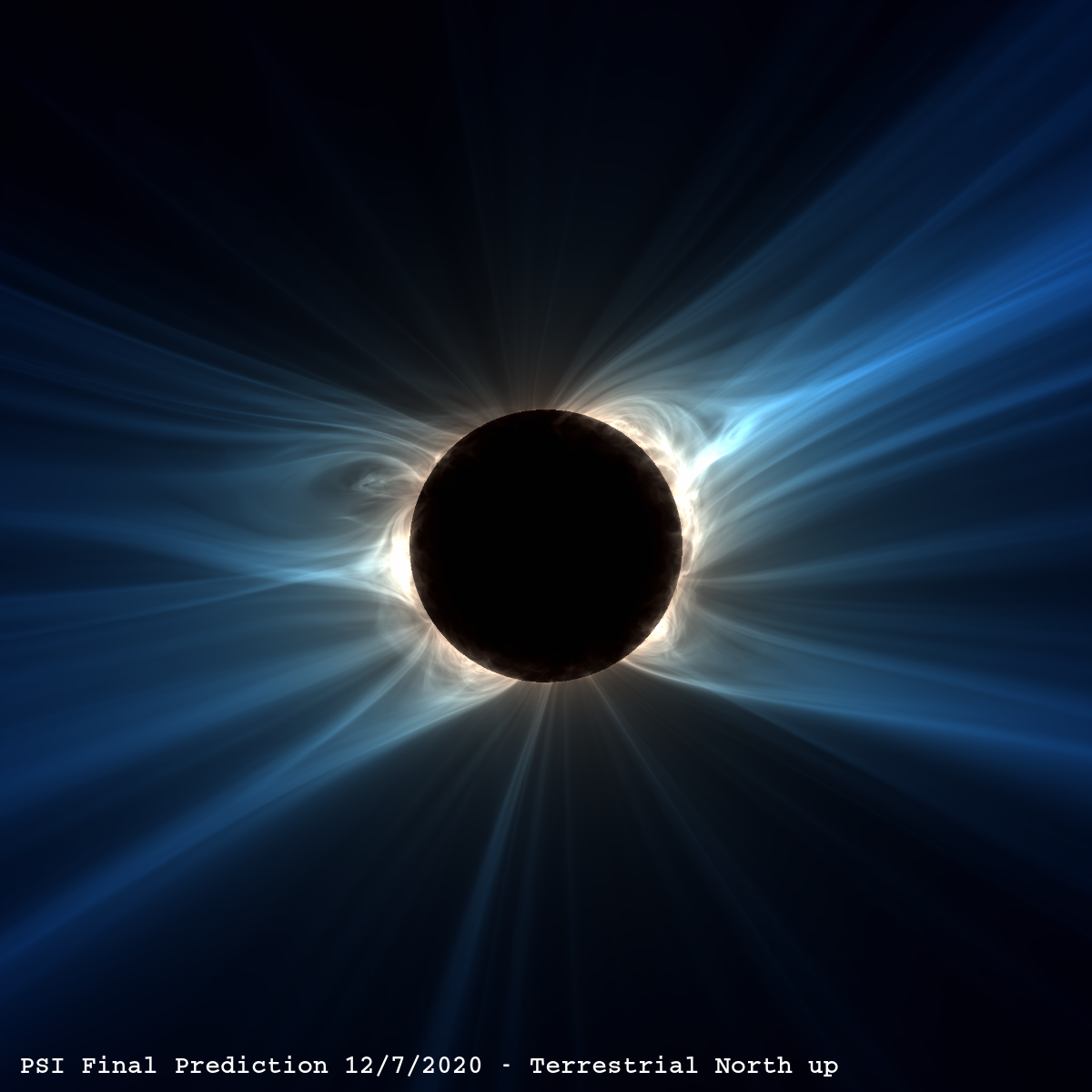

Volume-rendered Squashing Factor Q
(Eclipse Day View)
Volume-rendered Squashing Factor Q
(Rotating Movie)
The last set of images show a special visualization of the three-dimensional (3D) magnetic field. By tracing magnetic field lines at extremely high resolution, we can calculate a 3D map of the so-called squashing factor - a scientific measure designed to indicate the presence of complex structuring in the magnetic field. We then integrate the map along the line-of-sight, with special weightings to create a composite that resembles solar eclipse images. This is intended to highlight the inherent complexity of the Sun's magnetic field and its intimate connection to visible emission from the solar corona.
Modeling the Corona for the Total Solar Eclipse
On December 14th, 2020, a total eclipse of the Sun will be visible across the South Pacific, Chile, and Argentina. Over land, the eclipse will be visible quite high in the sky, staying just over 70 degrees in azimuth. The longest duration of totality will be about 2 minutes and 10 seconds, occurring in central Argentina. To see an interactive map of the path of the eclipse, please visit Xavier Jubier's interactive Google map. Also see Fred Espenak's Eclipse website for a detailed narrative of the eclipse circumstances and additional maps.
On November 29, 2020, we started an MHD computation of the solar corona, in preparation for our prediction of what the solar corona will look like during this eclipse. After about a week of calculations, this final prediction was posted on December 7, 2020. For the prediction, we used data measured by the HMI magnetograph aboard NASA's SDO spacecraft. We used a combination of HMI synoptic and daily maps, including data for Carrington rotation 2237 combined with data from a part of Carrington rotation 2238 measured up to 12:00 UTC on November 29, 2020. We also used a special method to account for unobserved data at the poles.
It was interesting to see how much solar activity has picked up since the recent solar minimum, which is evident in the evolution of the photospheric magnetic field leading up to the start of the calculation. In just 17 days between starting the preliminary prediction (November 12) and starting this final prediction (November 29), the surface magnetic flux in our MHD model increased by 50%! In this light, comparing the two predictions may give a sense for how rapidly the corona (and it's appearance) is currently evolving.
Our prediction is based on a magnetohydrodynamic model of the solar corona with a wave-turbulence-driven (WTD) methodology and improved energy transport. New to this eclipse, our calculation computes both the proton and electron temperatures separately, allowing these temperatures to collisionally decouple as they do in the solar wind. We have applied the WTD methodology to heat the corona previously, first in our prediction for the August 21, 2017 eclipse. This particular simulation employs other updates to our technical approach for the WTD formalism and the heating parametrization to better match the current solar conditions. This simulation is also quite large for this type of calculation, using 66 million grid points. For details about our model, please see our MAS Model Webpage and publications.
As we did for the August 21, 2017 eclipse and July 2, 2019 eclipse, we introduced magnetic shear along polarity inversion lines (PILs - lines separating positive and negative polarity regions) where filament channels were observed in EUV emission by SDO/AIA. This is a well-known feature of large-scale coronal magnetic fields. The handedness of the shear was estimated using the hemispheric rule in quiet sun, and by visual inspection of AIA images for active regions (see Energization). The introduction of shear qualitatively changes the shape of the streamers and the connectivity of the underlying fields, and increases the free magnetic energy in the corona. This was particularly true for the filament channel in the top left of the prediction images, the appearance of which we tried to specifically capture with our method. This structure supported a high-lying prominence that erupted at least twice in the past two solar rotations (October 23 and November 21), and it even produced a CME in our model!
From our model, we can predict quantities that can be observed directly. We provide images of the total brightness (B) and the polarized brightness (pB). The B resembles what is seen by the naked eye. However, pB is the more scientifically useful quantity. Traditionally, pB has been used to separate light scattered by the K-corona and the F-corona. The K-corona is the photospheric light scattered by electrons in the corona, while the F-corona is the photospheric light scattered by dust, which is unpolarized. Note that we do not model the F-corona so its contribution to B is not included.
We can also estimate emission in extreme ultraviolet (EUV) wavelengths and X-rays. The EUV emission can be compared with solar observations from the AIA instrument on SDO. X-ray emission can be compared with solar observations from the XRT instrument on Hinode.
You can read the technical details about the calculations that were used to make our predictions.
Additional Materials
Brightness
Polarized Brightness
Coronal Emission
Magnetic Field Lines
Publications
For technical details about our model, please see the following publications:
- Z. Mikić, J. A. Linker, D. D. Schnack, R. Lionello, and A. Tarditi, Magnetohydrodynamic Modeling of the Global Solar Corona, Physics of Plasmas, 6, 2217 (1999).
- Z. Mikić, J. A. Linker, P. Riley, and R. Lionello, Predicting the Structure of the Solar Corona During the 11 August 1999 Total Solar Eclipse, in The Last Total Solar Eclipse of the Millennium, Proceedings of the Conference held in Istanbul, Turkey, 13-15 August, 1999 (W. Livingston and A. Ozguc, eds.), ASP Conference Series, Vol. 205, p. 162 (2000).
- Z. Mikić, J. A. Linker, R. Lionello, P. Riley, and V. Titov, Predicting the Structure of the Solar Corona for the Total Solar Eclipse of August 1, 2006, in Solar and Stellar Physics Through Eclipses (O. Demircan, S. O. Selam, and B. Albayrak, eds.), ASP Conference Series, Vol. 370, p. 299 (2007).
- R. Lionello, J. A. Linker, and Z. Mikić, Multispectral Emission of the Sun During the First Whole Sun Month: Magnetohydrodynamic Simulations, Astrophys. J., 690, 902 (2009).
- V. Rušin, M. Druckmüller, P. Aniol, M. Minarovjech, M. Saniga, Z. Mikić, J. A. Linker, R. Lionello, P. Riley, and V. S. Titov, Comparing Eclipse Observations of the 2008 August 1 Solar Corona with an MHD Model Prediction, Astron. Astrophys., 513, A45 (2010).
- P. Riley, J. A. Linker, R. Lionello, and Z. Mikić, Corotating interaction regions during the recent solar minimum: The power and limitations of global MHD modeling, Journal of Atmospheric and Solar-Terrestrial Physics, 83, 1-10 (2012).
- R. Lionello, M. Velli, M., C. Downs, J. A. Linker, Z. Mikić, and A. Verdini, Validating a Time-Dependent Turbulence-Driven Model of the Solar Wind, Astrophys. J., 784, 120 (2014).
- C. Downs, R. Lionello, Z. Mikić, J. A. Linker, and M. Velli, Closed-Field Coronal Heating Driven by Wave Turbulence, Astrophys. J., 832, 180 (2016).
- Mikić, Zoran, Downs, Cooper, Linker, Jon A., Caplan, Ronald M., Mackay, Duncan H., Upton, Lisa A., Riley, Pete, Lionello, Roberto, Török, Tibor, Titov, Viacheslav S., Wijaya, Janvier, Druckmüller, Miloslav, Pasachoff, Jay M., Carlos, Wendy, Predicting the corona for the 21 August 2017 total solar eclipse, Nature Astronomy 10.1038/s41550-018-0562-5.
- Riley, Pete, Downs, Cooper, Linker, Jon A., Mikic, Zoran, Lionello, Roberto, and Caplan, Ronald M., Predicting the Structure of the Solar Corona and Inner Heliosphere during Parker Solar Probe's First Perihelion Pass, The Astrophysical Journal 874, L15, 2019.
