2D Slice Maps

Two-dimensional maps of the MHD solution at selected radial distances in the simulation domain.

Run

bgtest_superlowres — CR2121, MAST3, Steady-State

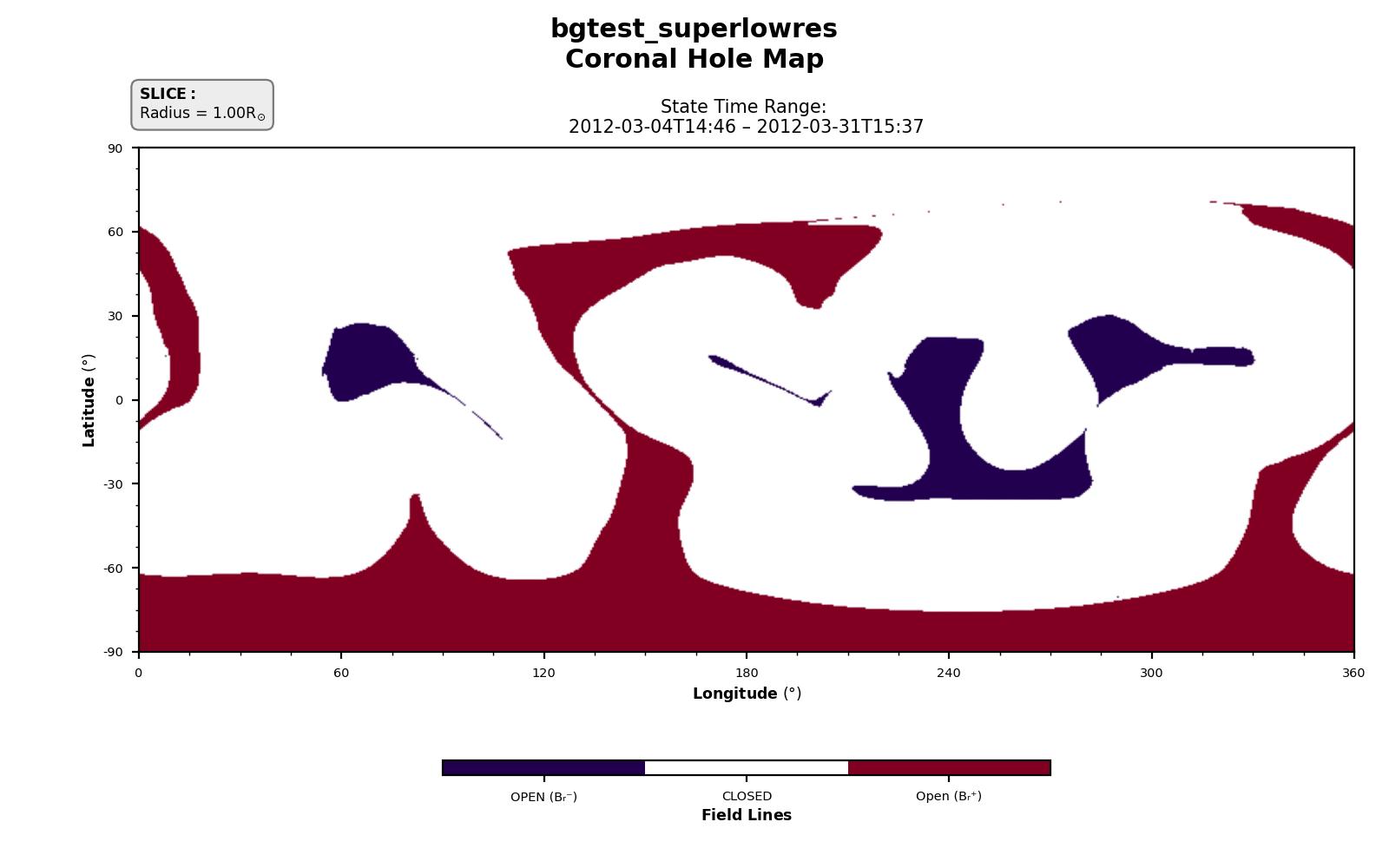

Coronal Hole Map (open flux at r = 1.0 R☉).
Coronal Hole Map (open flux at r = 1.0 R☉).

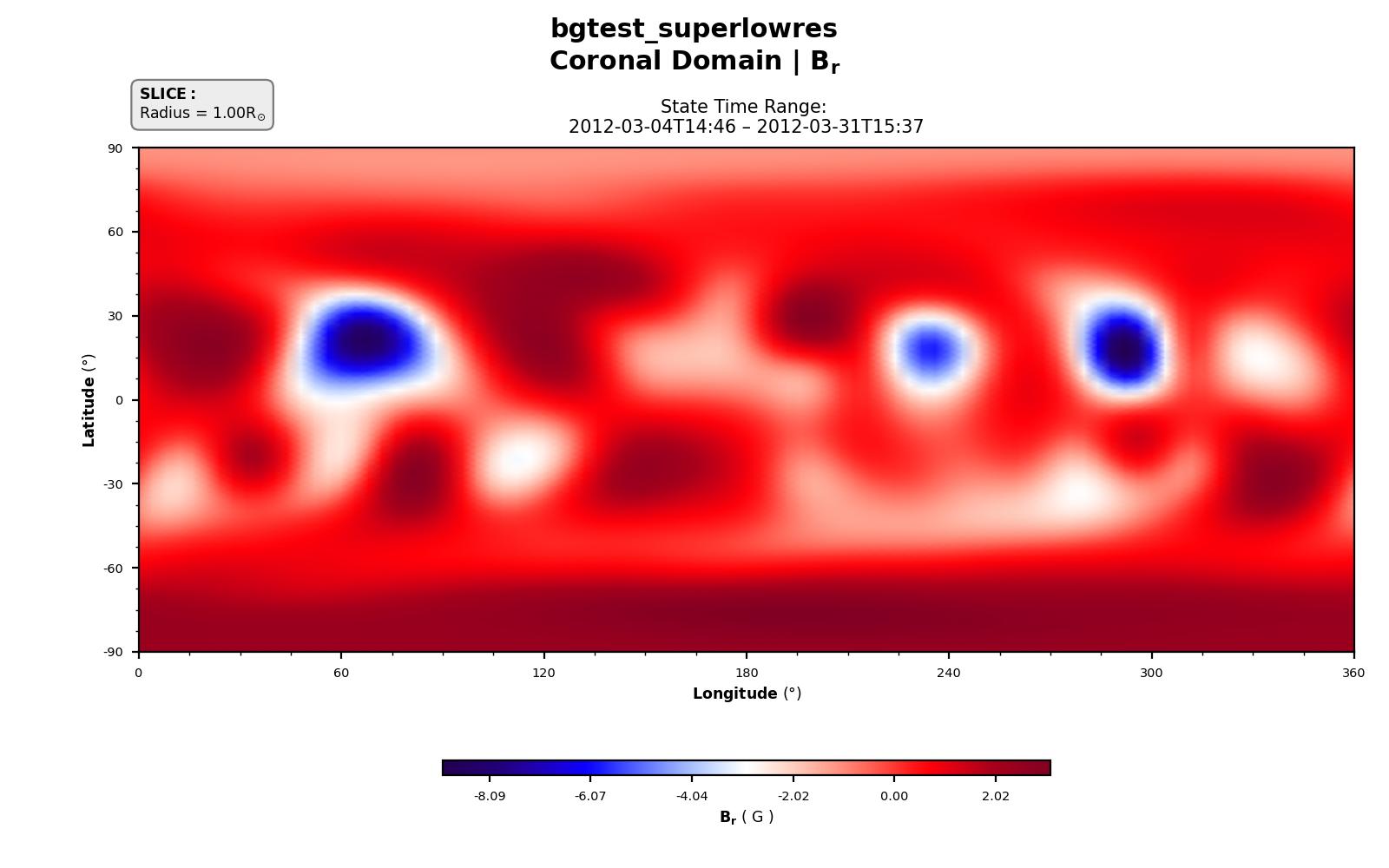

Radial magnetic field, Br, at r = 1.0 R☉.
Radial magnetic field, Br, at r = 1.0 R☉.

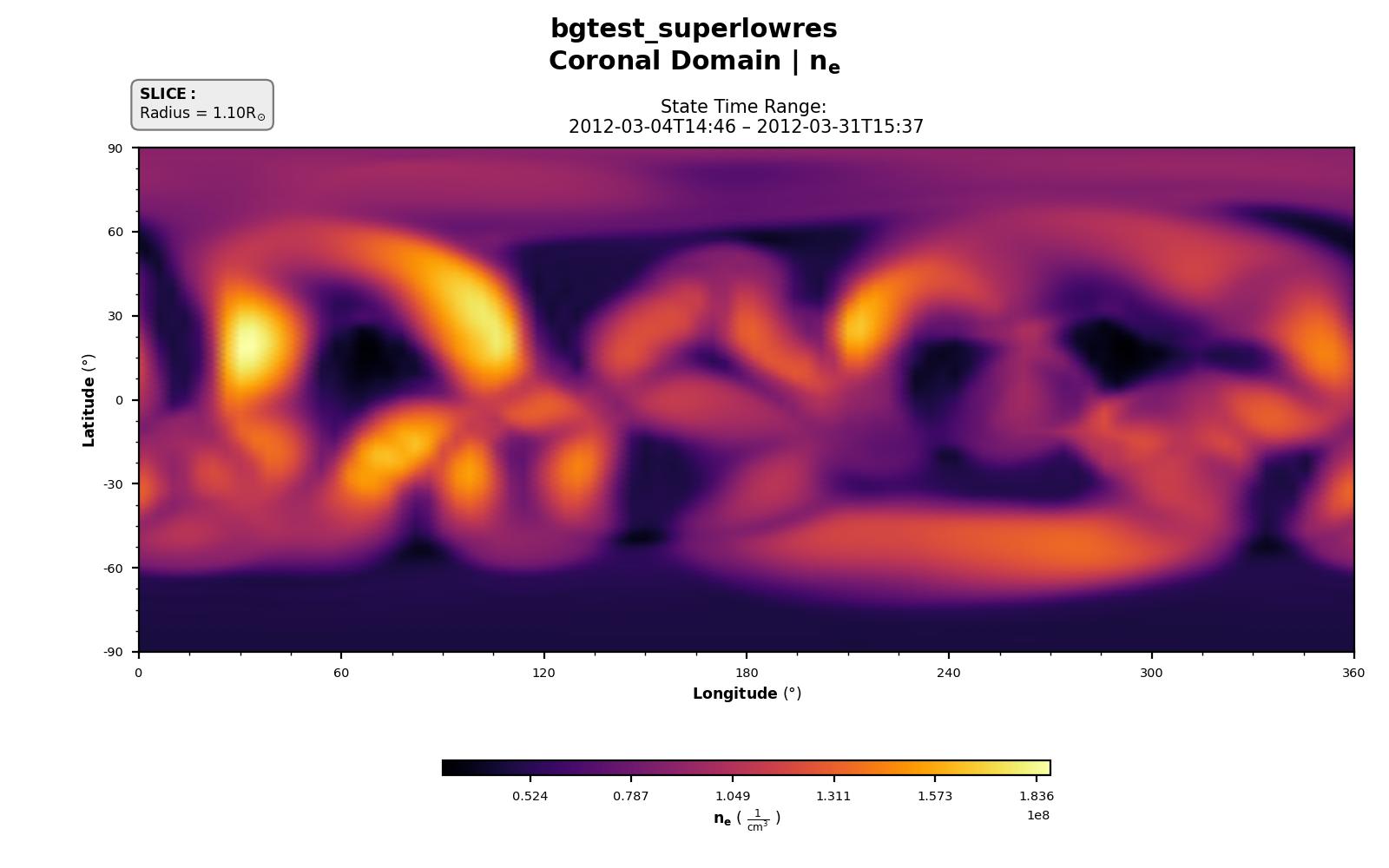

Electron Density at r = 1.1 R☉.
Electron Density at r = 1.1 R☉.

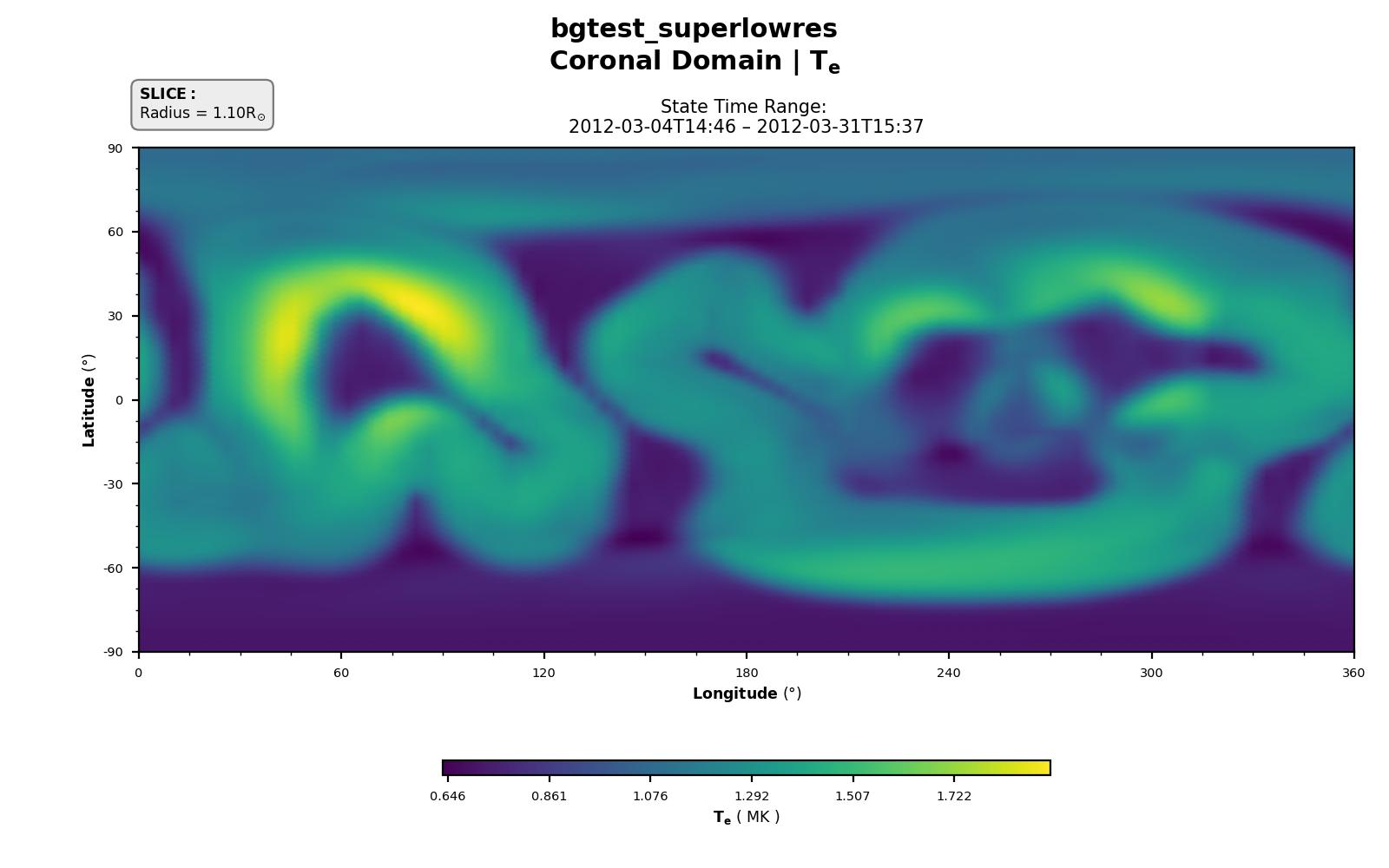

Electron Temperature at r = 1.1 R☉.
Electron Temperature at r = 1.1 R☉.

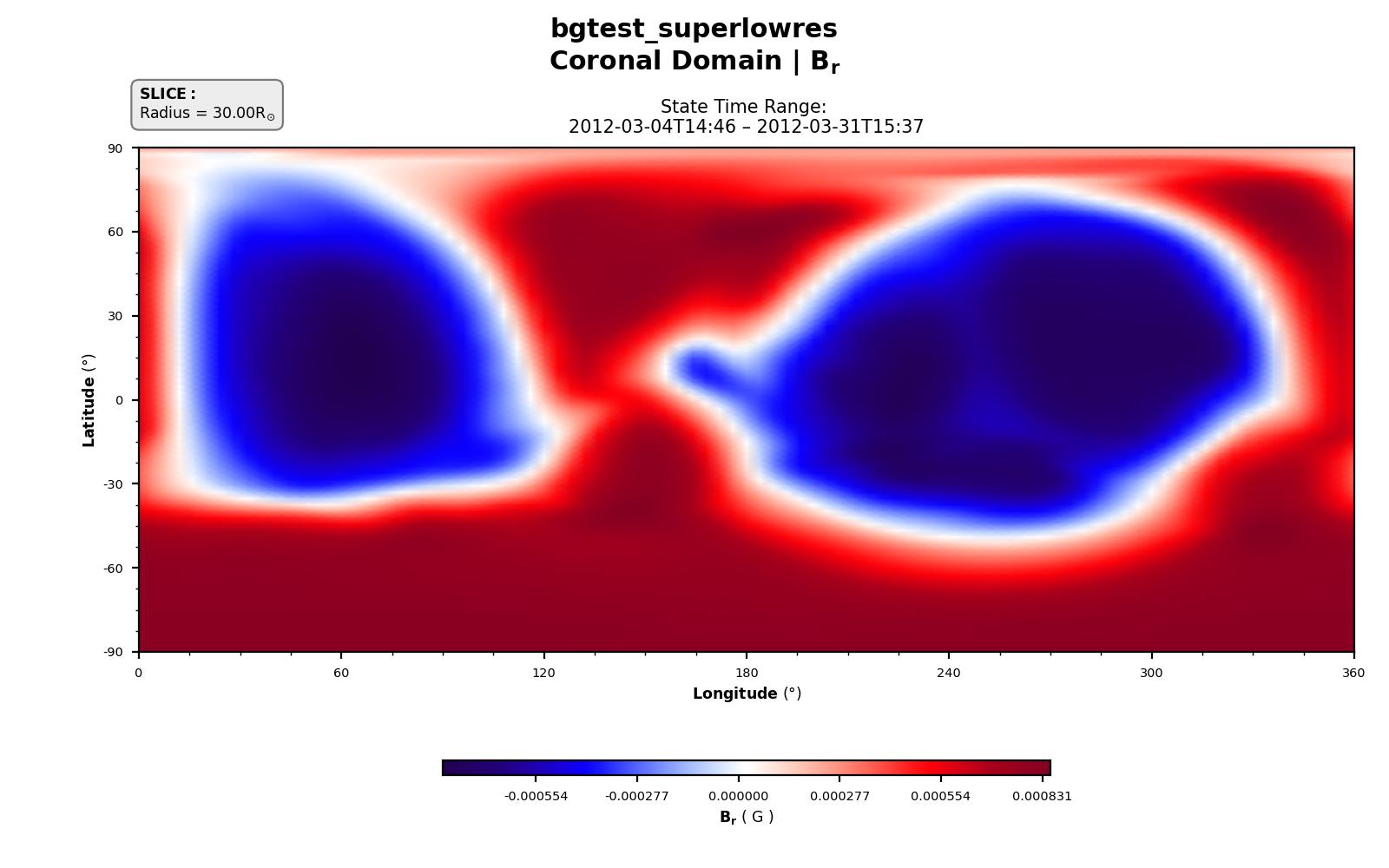

Radial magnetic field, Br, at r = 30 R☉.
Radial magnetic field, Br, at r = 30 R☉.

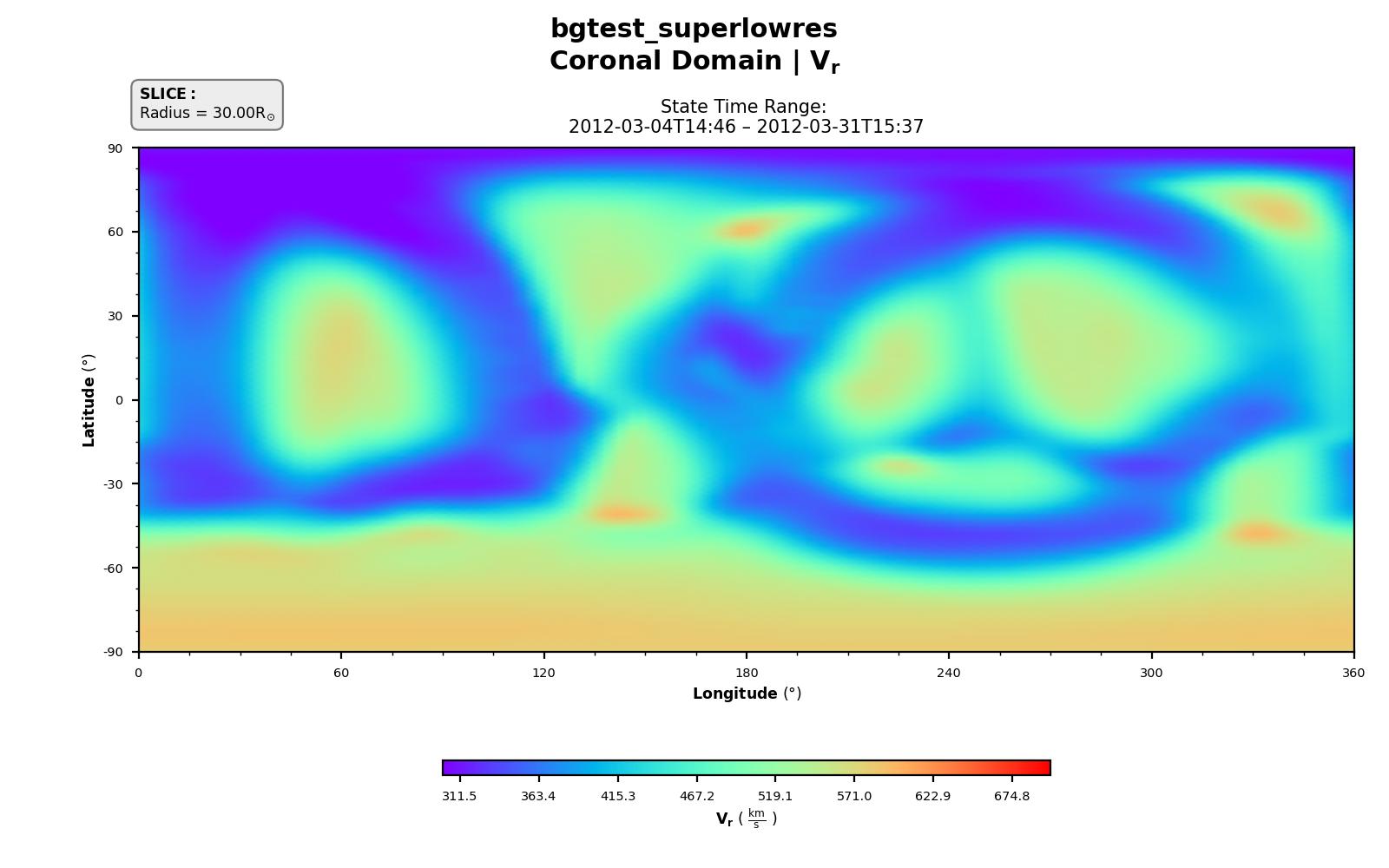

Radial velocity, Vr, at r = 30 R☉.
Radial velocity, Vr, at r = 30 R☉.

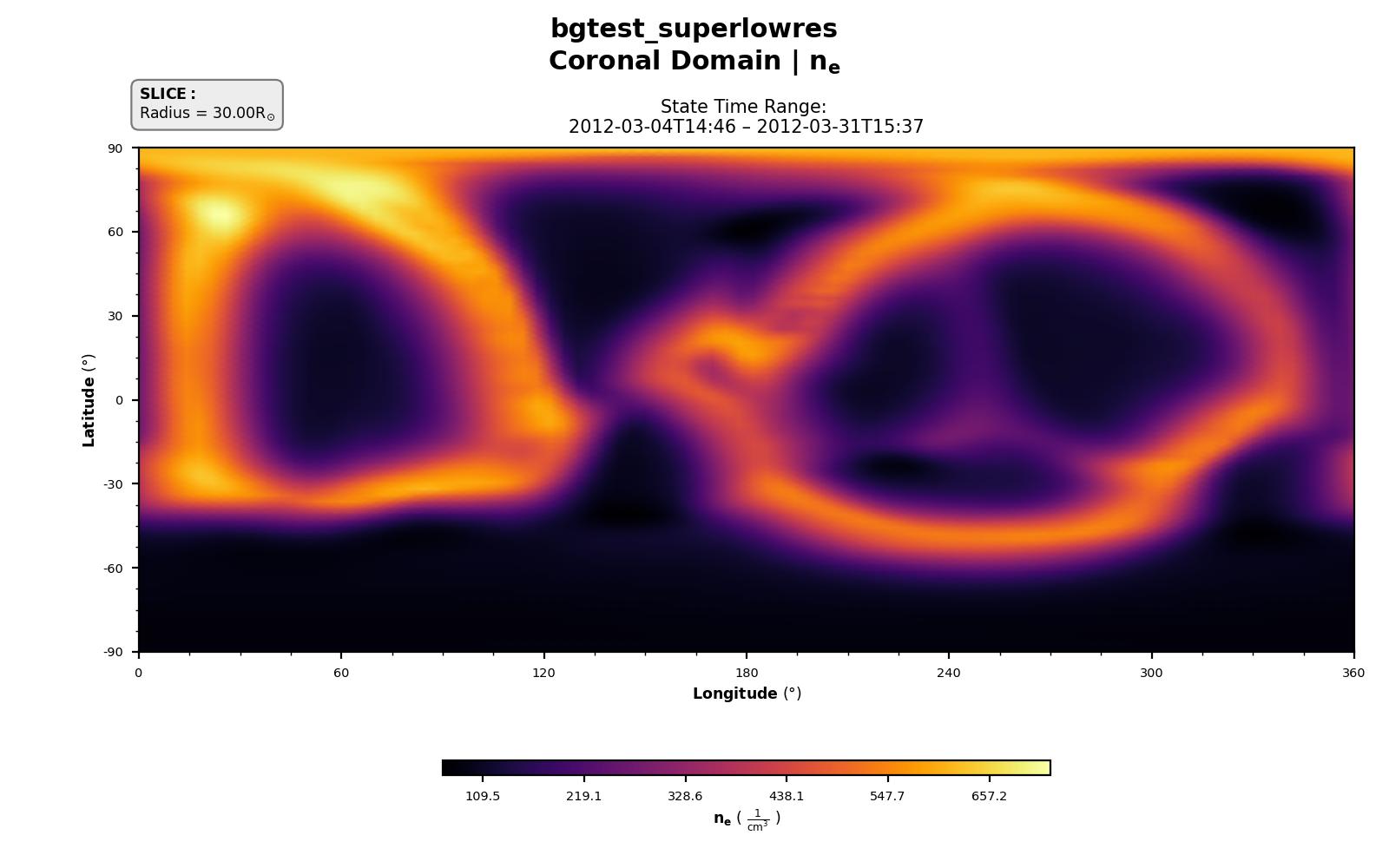

Electron Density at r = 30 R☉.
Electron Density at r = 30 R☉.

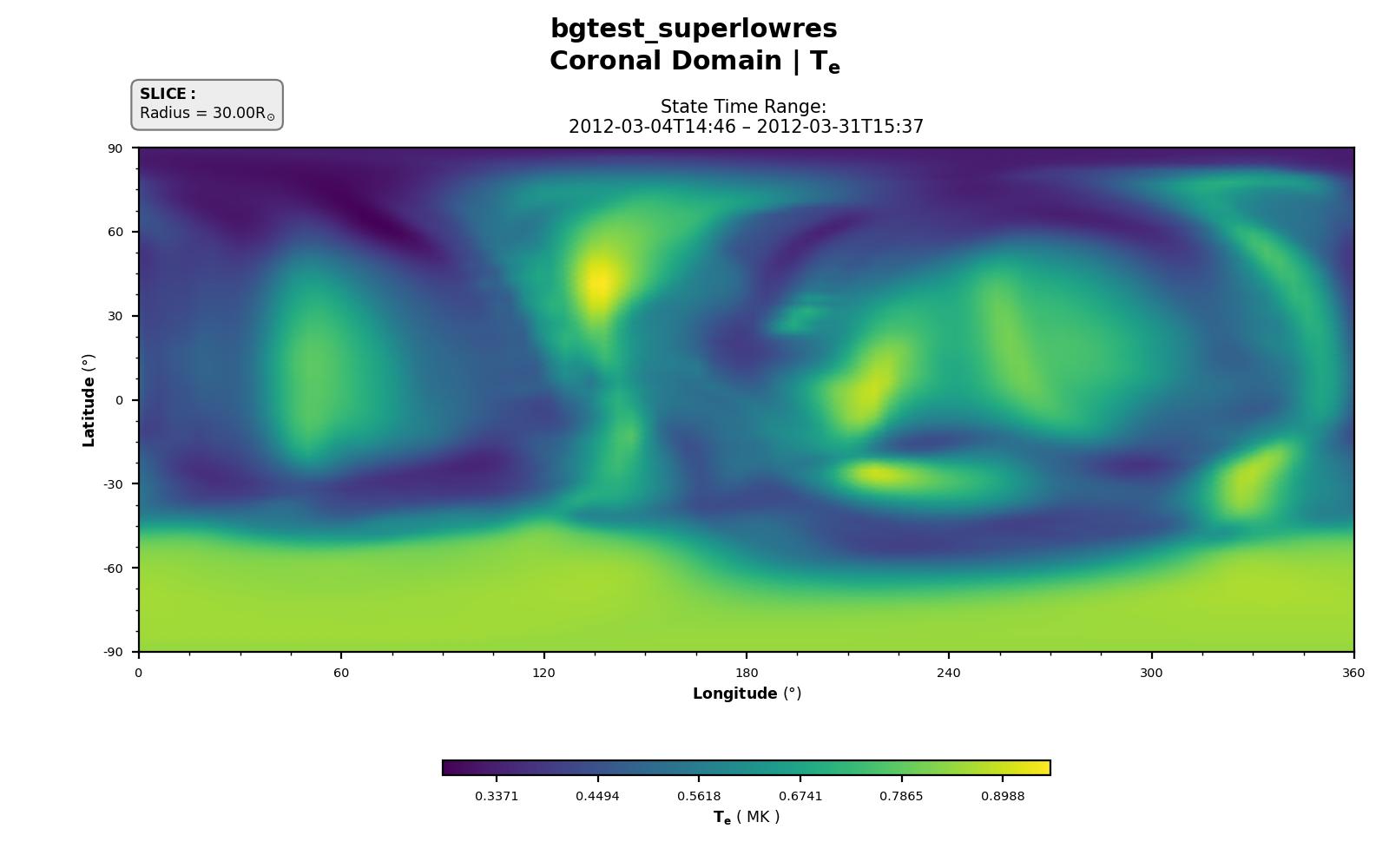

Electron Temperature at r = 30 R☉.
Electron Temperature at r = 30 R☉.

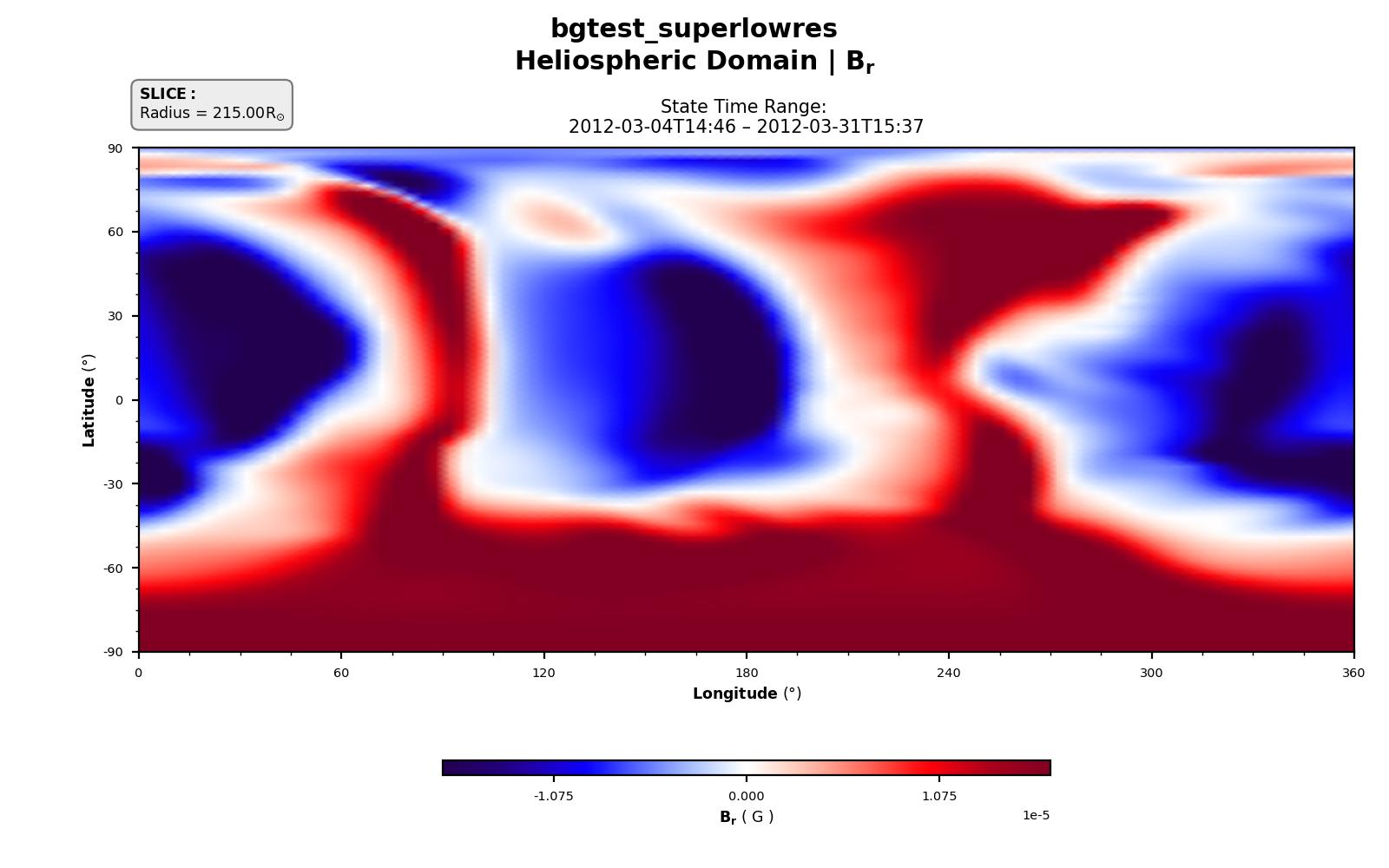

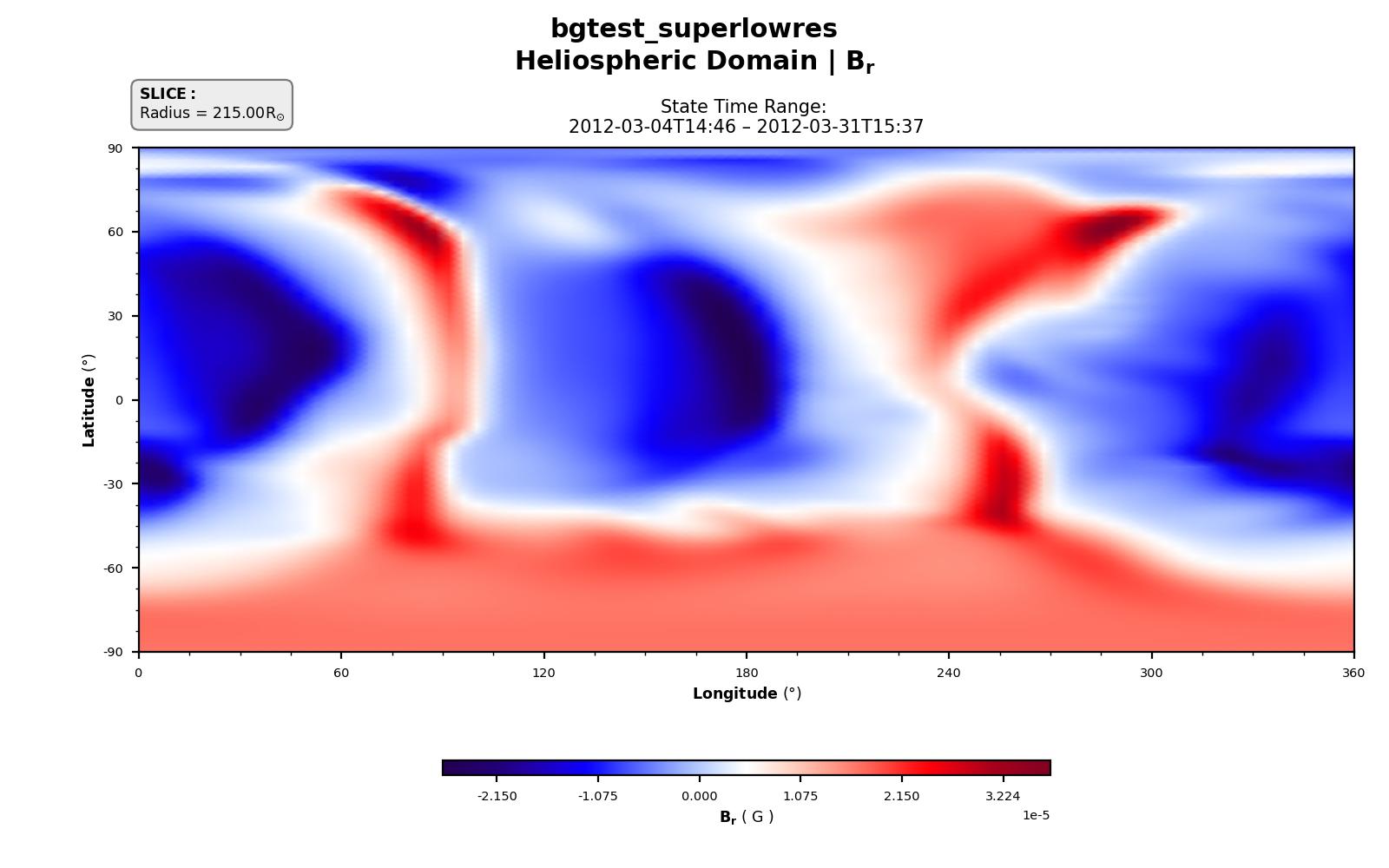

Radial magnetic field, Br, at r = 215 R☉ (1 AU).
Radial magnetic field, Br, at r = 215 R☉ (1 AU).

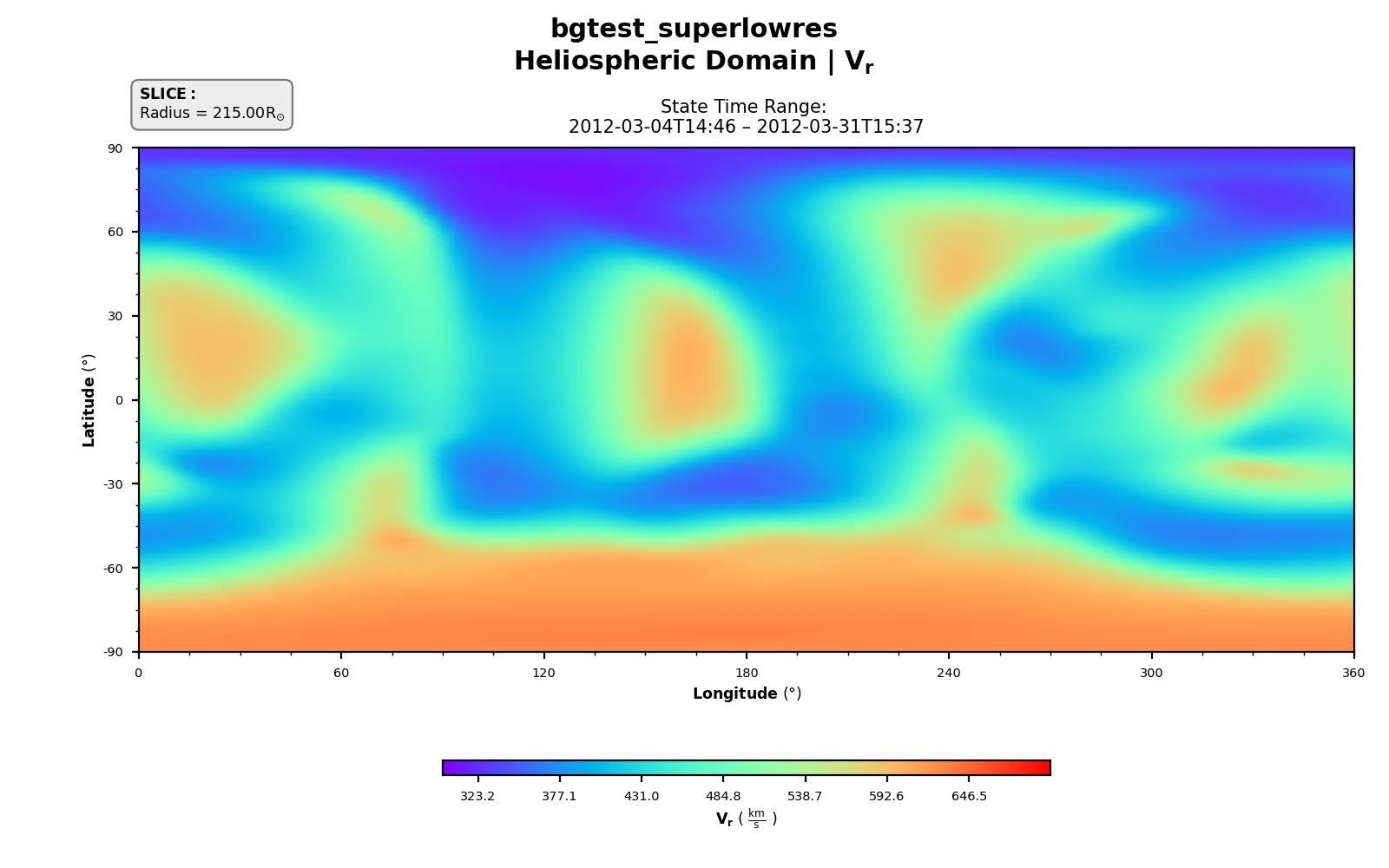

Radial velocity, Vr, at r = 215 R☉ (1 AU).
Radial velocity, Vr, at r = 215 R☉ (1 AU).

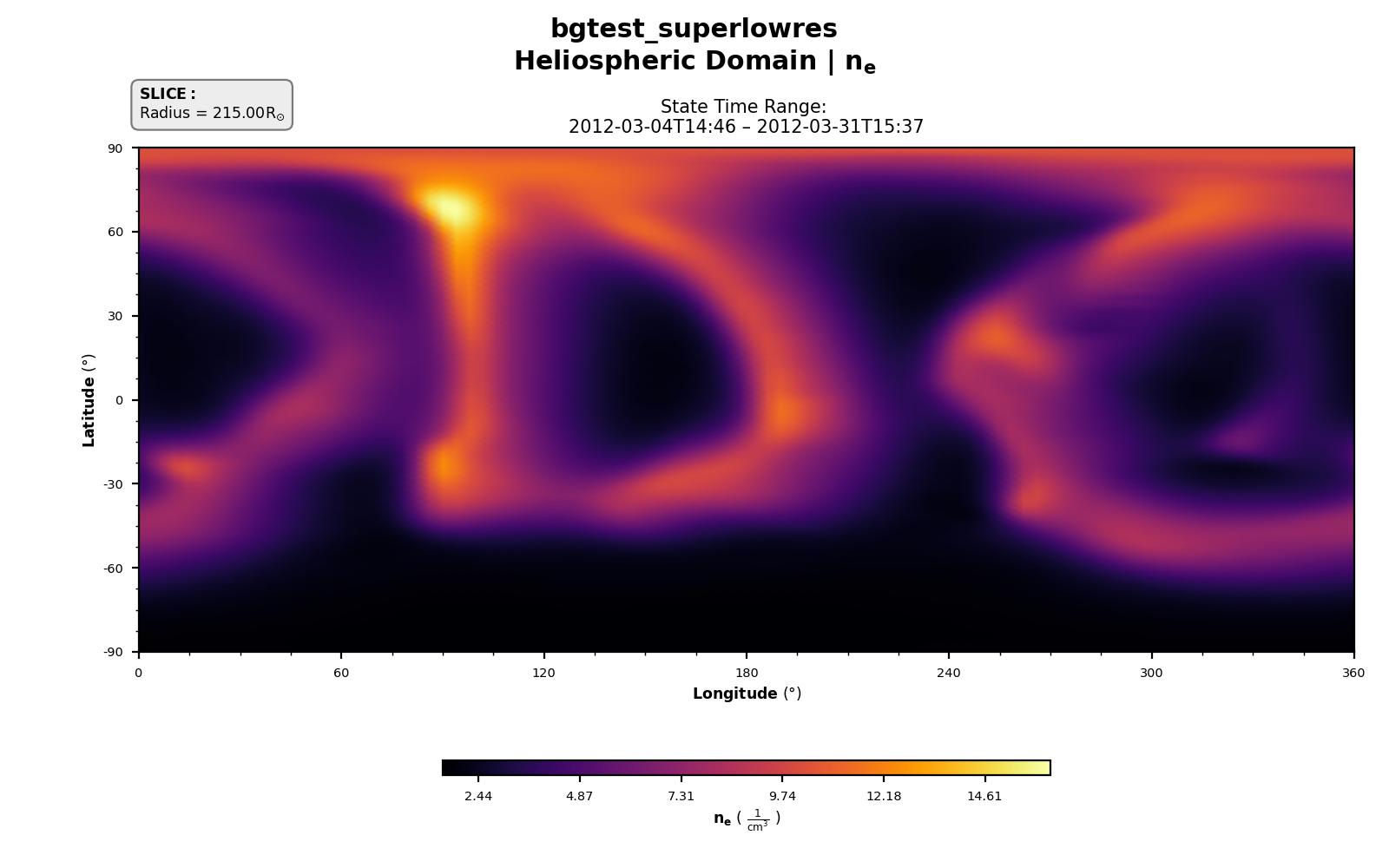

Electron Density at r = 215 R☉ (1 AU).
Electron Density at r = 215 R☉ (1 AU).

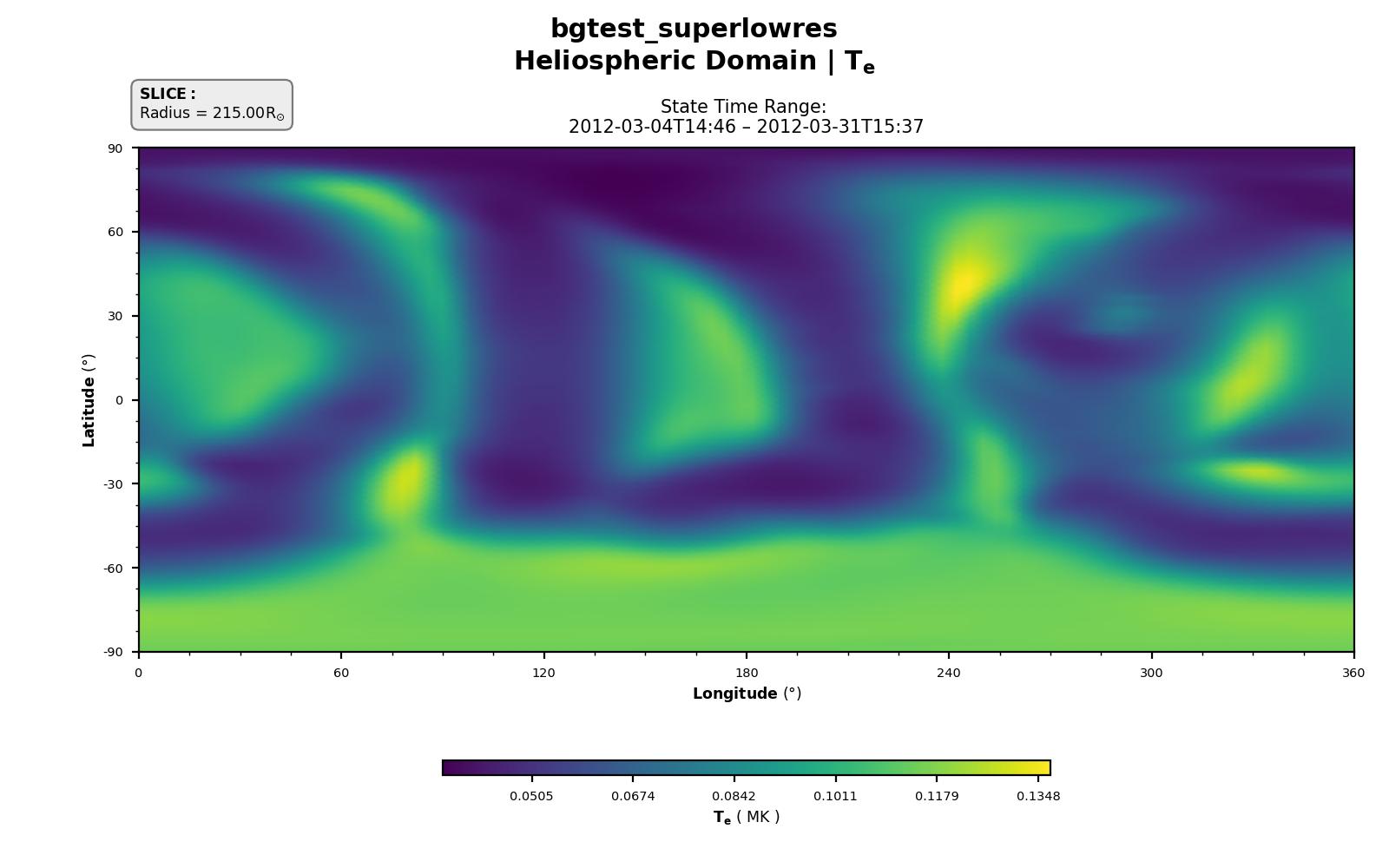

Electron Temperature at r = 215 R☉ (1 AU).
Electron Temperature at r = 215 R☉ (1 AU).
