Spacecraft Mapping

Magnetic connectivity mapping showing field lines traced from spacecraft positions back to the solar surface. Footpoint locations on the source surface and photosphere are overlaid on the simulated coronal field. Each tab shows two views: Br at the photosphere (r = 1 R☉) and the coronal hole map.

Run

bgtest_superlowres — CR2121, MAST3, Steady-State (2012-03-04 – 2012-03-31)

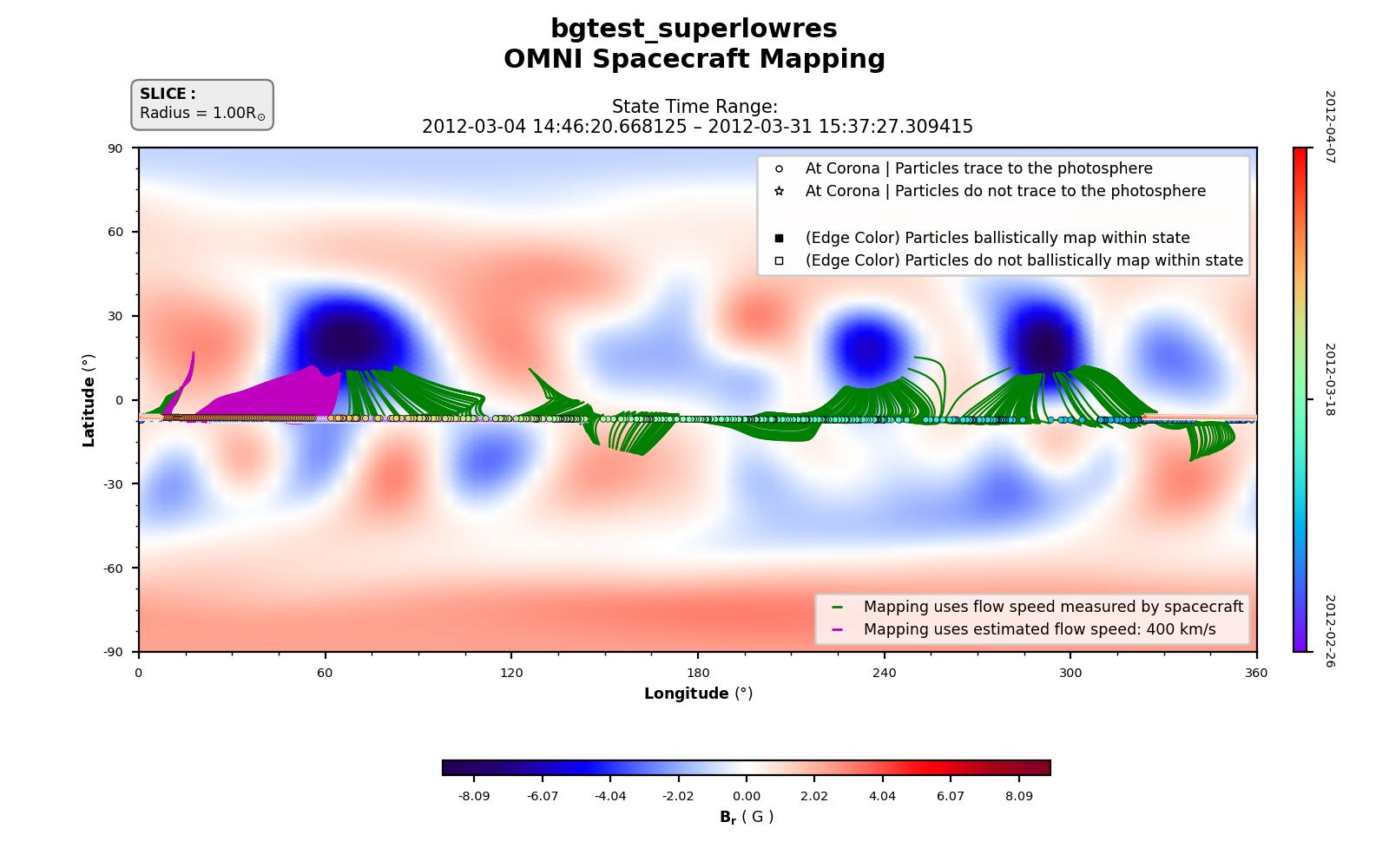

Spacecraft connectivity mapping for OMNI — Br at photosphere. Field-line footpoints traced from spacecraft positions to the solar surface.
Spacecraft connectivity mapping for OMNI — Br at photosphere. Field-line footpoints traced from spacecraft positions to the solar surface.

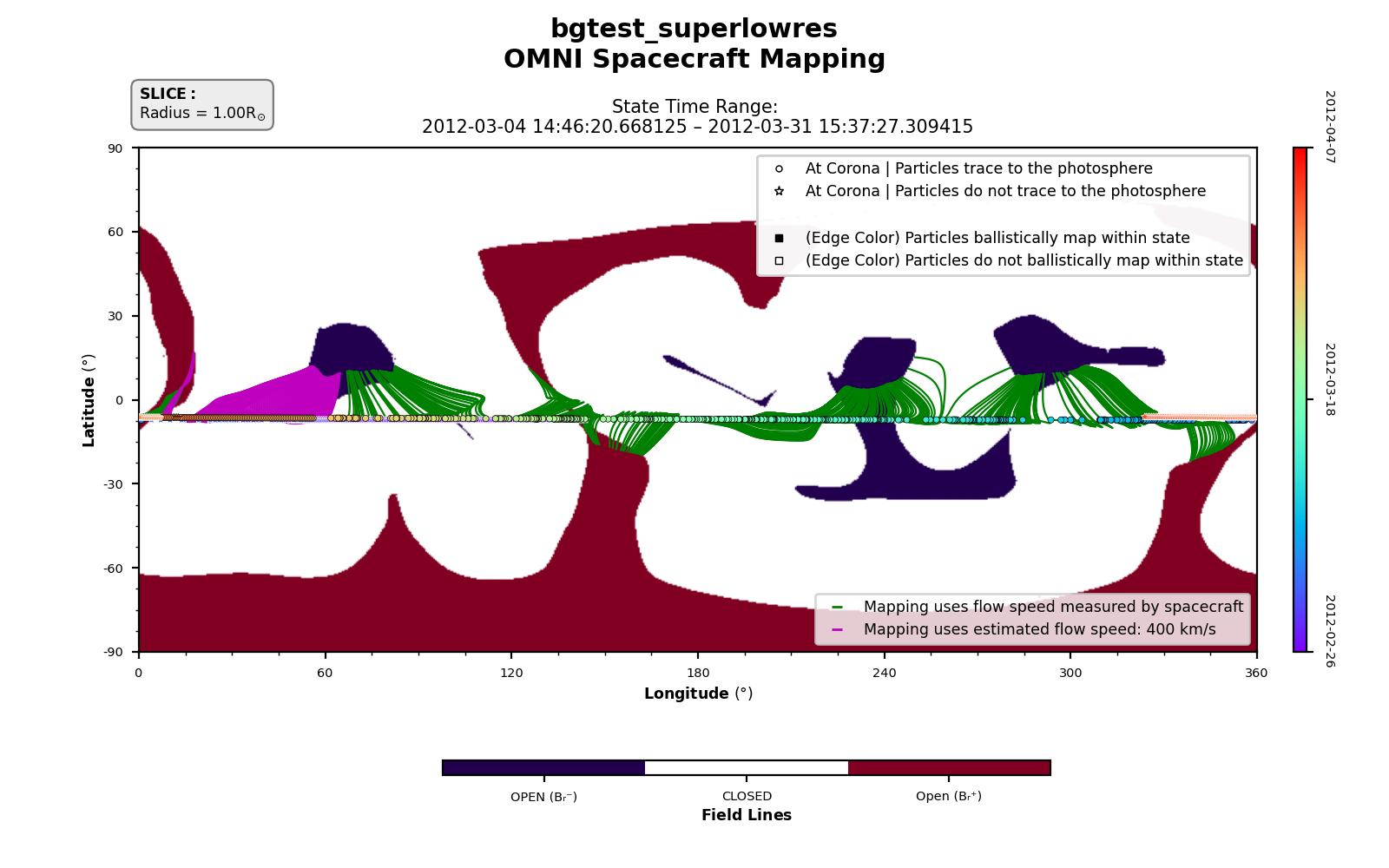

Spacecraft connectivity mapping for OMNI — Coronal hole map. Field-line footpoints traced from spacecraft positions to the solar surface.
Spacecraft connectivity mapping for OMNI — Coronal hole map. Field-line footpoints traced from spacecraft positions to the solar surface.

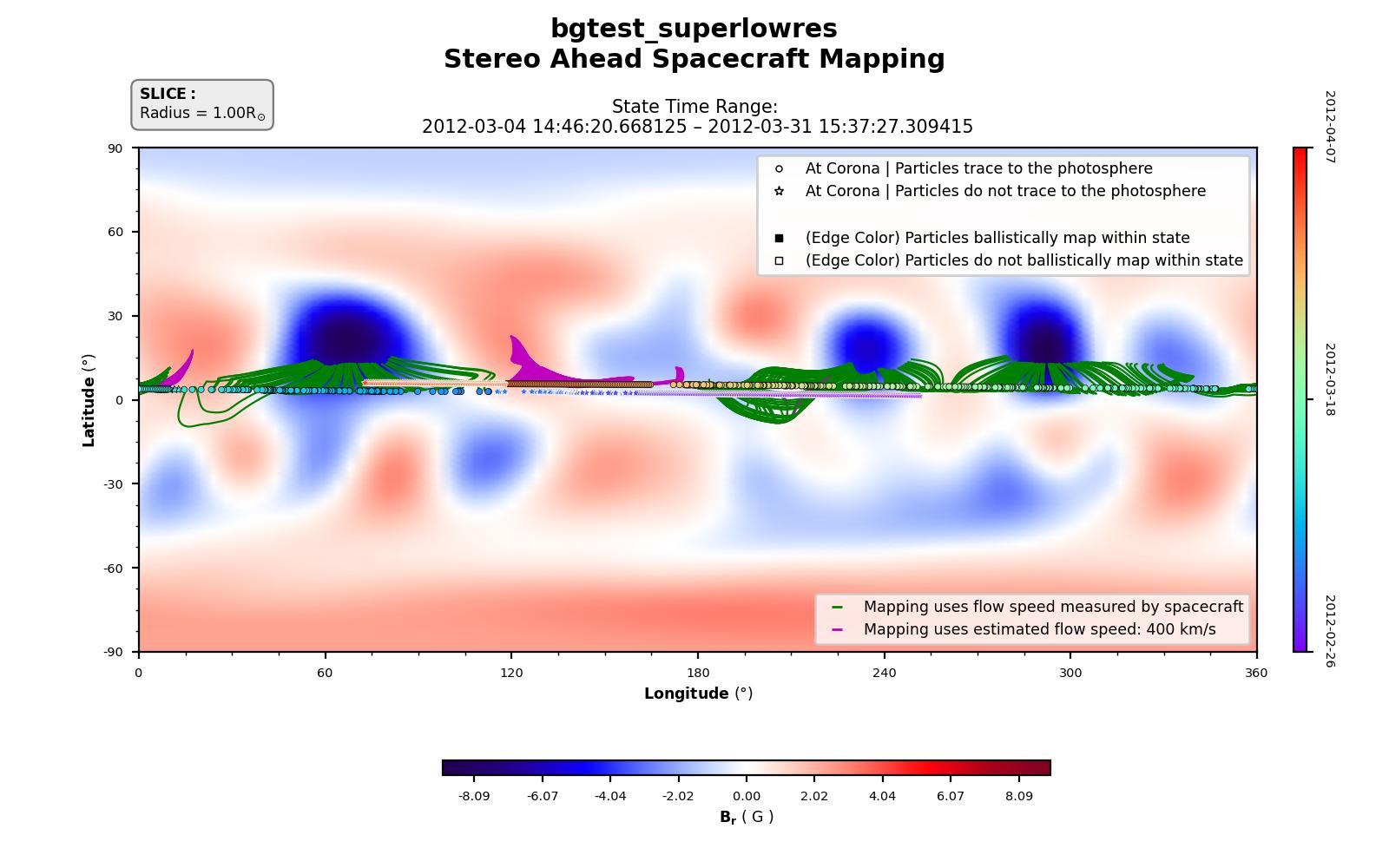

Spacecraft connectivity mapping for Stereo-A — Br at photosphere. Field-line footpoints traced from spacecraft positions to the solar surface.
Spacecraft connectivity mapping for Stereo-A — Br at photosphere. Field-line footpoints traced from spacecraft positions to the solar surface.

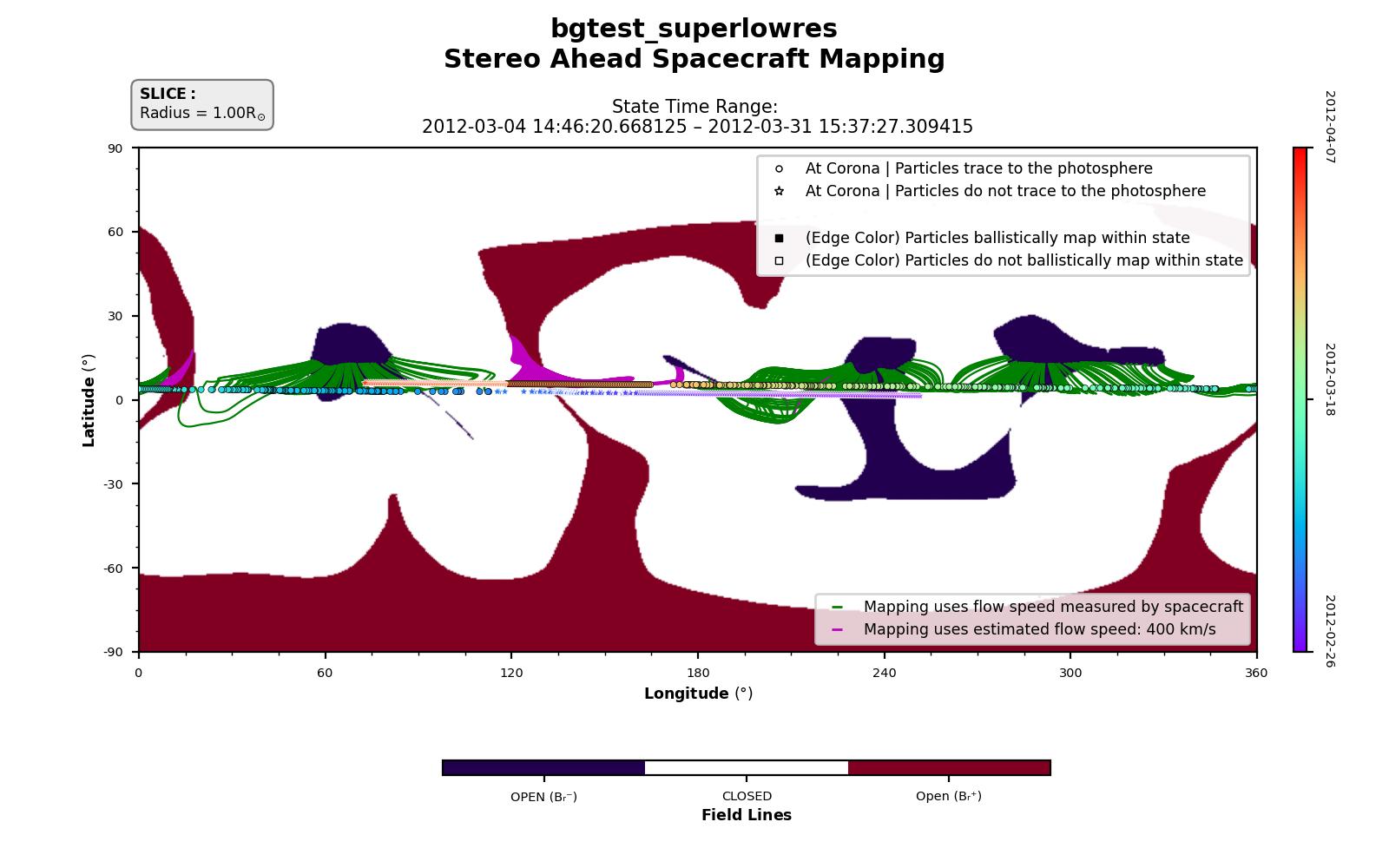

Spacecraft connectivity mapping for Stereo-A — Coronal hole map. Field-line footpoints traced from spacecraft positions to the solar surface.
Spacecraft connectivity mapping for Stereo-A — Coronal hole map. Field-line footpoints traced from spacecraft positions to the solar surface.

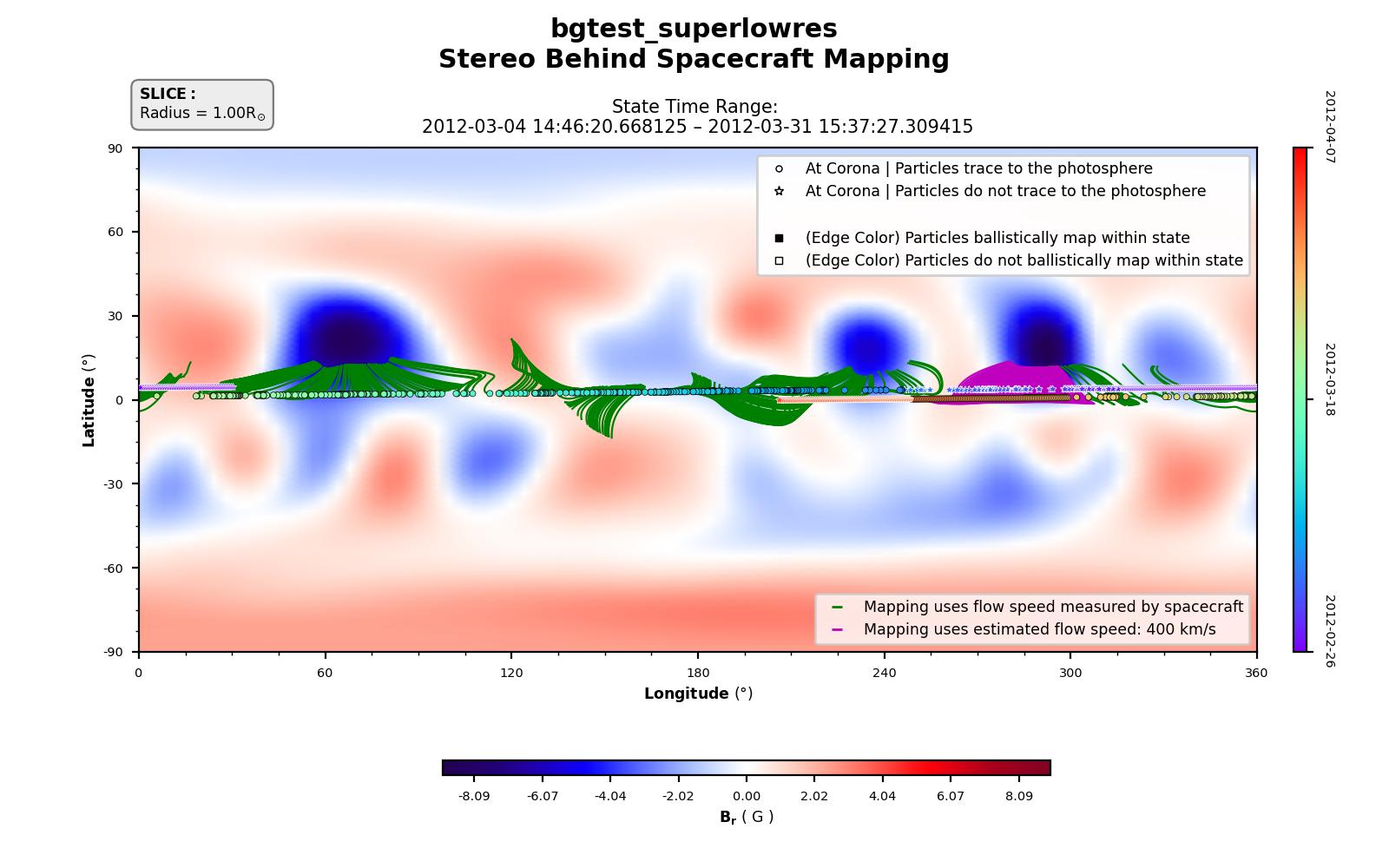

Spacecraft connectivity mapping for Stereo-B — Br at photosphere. Field-line footpoints traced from spacecraft positions to the solar surface.
Spacecraft connectivity mapping for Stereo-B — Br at photosphere. Field-line footpoints traced from spacecraft positions to the solar surface.
Spacecraft connectivity mapping for Stereo-B — Coronal hole map. Field-line footpoints traced from spacecraft positions to the solar surface.
Spacecraft connectivity mapping for Stereo-B — Coronal hole map. Field-line footpoints traced from spacecraft positions to the solar surface.
